TRUMPF TRUMATIC 500برج اللكمات

بطاقة الهوية
420953
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1996
الموقع
اسبانيا
رقم المخزن
ES-PUN-TRU-1996-00001

الوصف

This Trumpf Trumatic 500 Turret Punching Machine was manufactured in the year 1996, and has worked for 69217 production hours. Equipped with a Bosch Trumagraph CC220S Control unit, this machine got fully overhauled and has processed mainly up to 3 mm thick galvanized metal sheets. Machine includes Lantek software which is able to connect the machine with the CAP CAM.

المواصفات

تحويل المواصفات للمتري
حمولة
25 T
محطة تارت#
18
CNC تحكم
CNC (BOSCH TRUMAGRAPH CC220S)

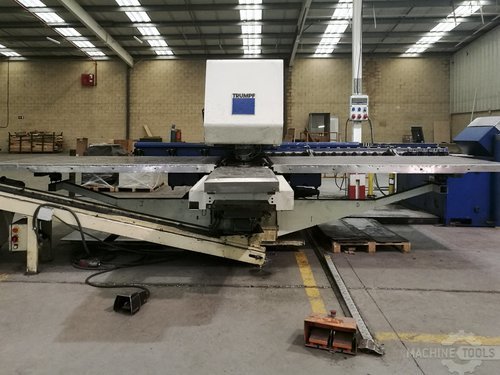

Trumpf Trumatic 500 Turret Punching Machine

Production Hours: 69217

General Data:
Measurements width: 6900 mm
Measurements depth: 5800 mm
Measurements height: 2200 mm
Machine weight: 11050 kg

Control Unit:
Brand: Bosch
Model: Trumagraph CC220S

Main Drive:
Punching force: 220 kN
Maximum sheet thickness: 8 mm

Movement:
X-Axis Movement: 2500 mm
X-Axis Working Feed: 90 m/min
Y-Axis Movement: 1300 mm
Y-Axis Working Feed: 60 m/min

Workpiece:
Workpiece X: 2500 mm
Workpiece Y: 1300 mm
Workpiece Z: 8 mm
Workpiece weight: 150 kg

Tools:
Number of station: 20

Media:
Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 17 kVA
Air pressure: 6 bar
Chip conveyor: Yes

Additional Equipment:
* Lantek software
