TRUMPF TRUMATIC 200برج اللكمات

بطاقة الهوية
421021
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2001
الموقع
اسبانيا
رقم المخزن
ES-PUN-TRU-2001-00001

الوصف

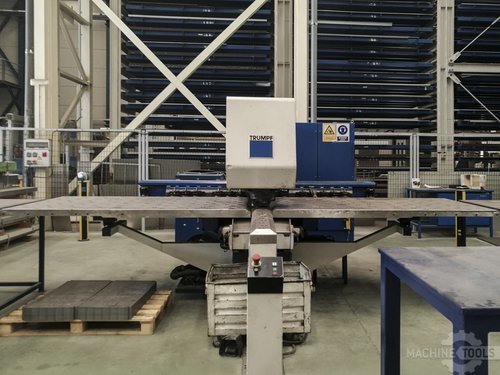

This Trumpf Trumatic 200 Turret Punching Machine was manufactured in the year 2001 in Germany and has a working record of 24998 production hours. Equipped with a Bosch Trumagraph CC220 Control unit, this machine stands out due to its versatility and agility and comes with a wide selection of additional tools. In the past, this unit has mainly processed metal sheets up to 4 mm of thickness.

المواصفات

تحويل المواصفات للمتري
حمولة
22 T
CNC تحكم
CNC (BOSCH TRUMAGRAPH)

Trumpf Trumatic 200 Turret Punching Machine

Production Hours: 24998

General Data:
Measurements width: 2440 mm
Measurements depth: 2670 mm
Measurements height: 2080 mm
Machine weight: 8000 kg

Control Unit:
Brand: BOSCH
Model: Trumagraph CC220

Main Drive:
Punching force: 165 kN
Maximum sheet thickness: 6.4 mm

Movement:
X-Axis Movement: 2070 mm
Y-Axis Movement: 1280 mm

Workpiece:
Workpiece weight: 150 kg

Table:
Max punching diameter: 76.2 mm

Tools:
Number of station: 15+2

Media:
Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 14 kVA
Air pressure: 6

Additional Equipment:
* Tools
