AMADA PEGA 357برج اللكمات

بطاقة الهوية
421428
علامة تجارية
موديل
السنة
1988
الموقع
الولايات المتحدة الامريكية
رقم المخزن
6314

الوصف

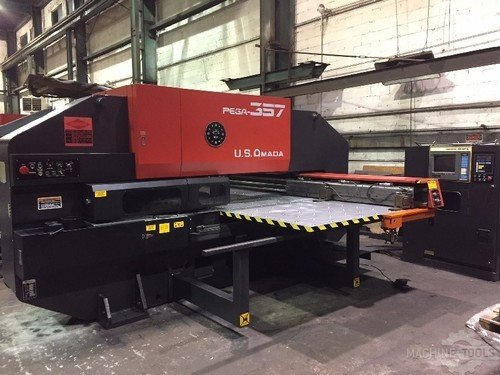

Used Amada Turret Punch Press ,Pega 357

المواصفات

تحويل المواصفات للمتري
حمولة
33 T
محطة تارت#
58
CNC تحكم
CNC (FANUC 6M)

EQUIPPED WITH
·Built-in Microprocessor - Standard software included for programming a comprehensive set of patterns used in punching, nibbling, and notching operations.
·
Diagnostic System - Extensive diagnostic system indicates programming errors and pinpoints machine and control malfunctions.

Stripping Sensor - Automatically halts machine operation if tool does not strip.

Automatic Repositioning - Heavy duty work holders secure material during repositioning.

Hydraulic clutch and brake system.

Metric or inch dimensional programming.

Precision ground recirculating ball lead screws for X and Y Axis.

Crash proof clamp sensors.

Hardened and ground turret index pins and bushings.

Safety interlocks and overrun protectors with all step control prevents accidents.

58 station turret for thick tooling. (2 Auto Index Stations).

Fanuc 04PC control with CRT screen and keyboard unit with memory functions and editing at control feature.

Terms: 1/3 Deposit With Order, Balance Due Before Shipment


SPECIFICATIONS
Capacity: 30 tons
Sheet Size: 50 x 72
Thickest Material: 1/4 "
Max Hole Diameter: 4.5"
Number of Turret Stations: 58 with A/I
Strokes Per Minute: 350
Axis Speed: 2000 IPM
Hits Per Min. 1" centers: 220
Control Model: Fanuc 04PC
Drive motors: AC Servo
Smallest Programmable Increment: .001"
Power Requirements: 230/208/460/60/3 phase
Machine Weight: 30,000 lbs
