SEI LASER MERCURY 603قاطعات الليزر

بطاقة الهوية
421432
علامة تجارية
SEI LASER
موديل
MERCURY 603
حالة
مستعملة - جيد
السنة
2006
الموقع
اليونان
رقم المخزن
GR-LAS-SEI-2006-00001

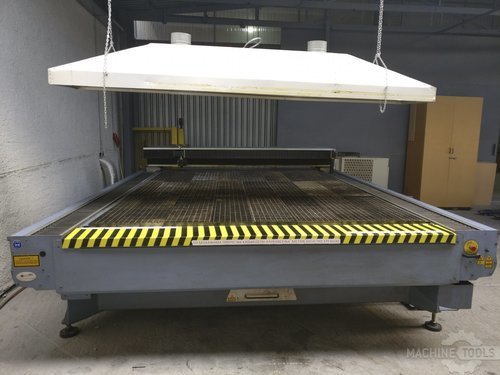

Front view of sei laser mercury 603 machine
صور ( 10 )
بطاقة الهوية
421432
علامة تجارية
SEI LASER
موديل
MERCURY 603
حالة
مستعملة - جيد
السنة
2006
الموقع
اليونان
رقم المخزن
GR-LAS-SEI-2006-00001

الوصف

This SEI Laser MERCURY 603 Laser Cutting Machine was manufactured in Italy in 2006 and has a working record of 22000 production hours. Operated through a ROFIN SC x30 control unit, the model has low maintenance costs and stands out for its accurate laser: it can work with several materials (steel, stainless steel, wood and acrylic) at excellent speed and providing cutting quality without the need of further finishes. In the past, this machine has worked mostly with acrylic of up to 25 mm and wood of up to 50 mm, producing displays, exhibition kiosks and mirrors for various industry types. A complementary metal head (by SEI Laser) is included as additional equipment.

المواصفات

SEI Laser MERCURY 603 Laser Cutting Machine

Production Hours: 22000

General Data:
Measurements width: 4250 mm
Measurements depth: 3050 mm
Measurements height: 1250 mm
Machine weight: 3500 kg

Control Unit:
Brand: ROFIN
Model: SC x30

Main Drive:
Laser power: 0.35 kW
Laser type: CO2
Laser brand: SEI Laser

Movement:
X-Axis Movement: 2080 mm
Y-Axis Movement: 3060 mm
Z-Axis Movement: 100 mm

Workpiece:
Workpiece X: 3050 mm
Workpiece Y: 2050 mm
Workpiece Z: 25 mm
Workpiece weight: 200 kg

Max Material Thickness:
Steel: 3 mm
Stainless steel: 2 mm

Media:
Main electronic connection: 400 V / 50-60 Hz
Power consumption: 21 kW / 32A

Additional Equipment:
* 1x Metal head (SEI Laser)
