TRUMPF TRUMATIC L3030قاطعات الليزر

بطاقة الهوية
421433
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2001
الموقع
المانيا
رقم المخزن
DE-LAS-TRU-2001-00001

الوصف

This Trumpf Trumatic L3030 Laser Cutting Machine was manufactured in 2001 in Switzerland and has a working record of approximately 47944 laser hours. This equipment is operated through a Siemens SINUMERIK 840D Control unit and mainly processed mild steel up to 16 mm of thickness in the past. Thanks to the included Trumpf LiftMaster, loading and unloading processes or pallet handling and part removal is mostly automated.

المواصفات

تحويل المواصفات للمتري
ورقة-W
60 "
ورقة-L
120 "
وات
3000 w
بوصة فى الدقيقة IPM
3346 cmpm
حركة X
120 "
حركة Y
60 "
حركة Z
4.5 "
CNC تحكم
CNC (SIEMENS 840D)

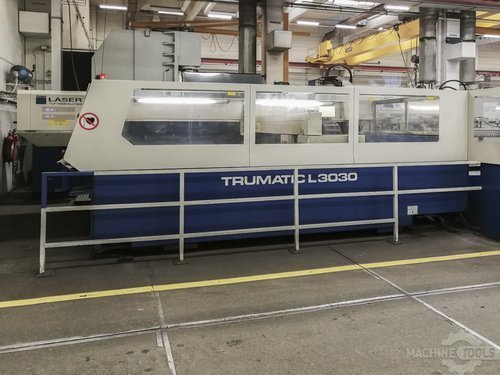

Trumpf Trumatic L3030 Laser Cutting Machine

Production Hours: 47944

General Data:
Measurements width: 4700 mm
Measurements depth: 9300 mm
Measurements height: 2200 mm

Control Unit:
Brand: Siemens
Model: SINUMERIK 840D

Main Drive:
Laser power: 4 kW
Laser type: CO2
Laser brand: Trumpf TruFlow

Movement:
X-Axis Movement: 3000 mm
Y-Axis Movement: 1500 mm

Max Material Thickness:
Steel: 20 mm
Stainless steel: 16 mm
Aluminium: 10 mm

Machine Specific Data:
Size of cutting head 1: 5"
Size of cutting head 2: 7.5"

Media:
Main electronic connection: 400 V / 50 Hz
Power consumption: 66 kVA
Air pressure: 6 bar

Additional Equipment:
* Trumpf LiftMaster
