GIDDINGS & LEWIS 60عمودي مملة ميلز (incld VTL)

بطاقة الهوية
421458
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1989
الموقع
Wisconsin
الولايات المتحدة الامريكية
عودة السياسة
كما هو

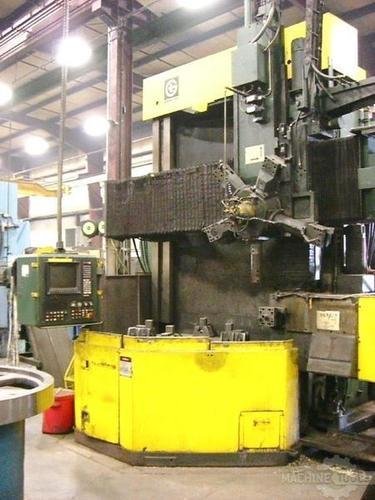

1989 g l 60inch cnc vtl   full front view
صور ( 9 )
بطاقة الهوية
421458
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1989
الموقع
Wisconsin
الولايات المتحدة الامريكية
عودة السياسة
كما هو

الوصف

1989 G & L B-8 60 Inch Table CNC VTL Remanufactured & Retro-Fitted Fanuc 11-TTF CNC 4-Axis Control and Installed With All Options!. Side Head Pentagon Turret Main Specifications: Table Size - 60" Combination Table. Max O.D. swing - with sidehead - 66" Max O.D. swing - above sidehead - 72" Max clearance from facing tool tip in pentagon to top of table - 70" this is an absolute dim. Max clearance from facing tool tip in pentagon to top of jaws - 64" this is an absolute dim. Chuck type - (4) independent jaws Table speeds - 3 - 68 RPM + 12 - 272 RPM One head on rail - Pentagon turret Sidehead - Square turret Travels: Pentagon turret, x axis - full rail z axis - 36" Sidehead u axis - 57.62 w axis - 25.5 Feeds: Rapid traverse (all 4 axes) - 120- IPM Cutting feed rate (all 4 axes) - .01" - .100"/REV Ball screw size (all 4 axes) - 3" diam Electrics - 460/3/60 Drive motor - 60hp CNC Control - Fanuc 11TTF, 4 axis simultaneous control, pendant mount Lube system - Trabon Ways - Hardened and ground Enductosyn scales Chip Conveyor Original year built - 1976 Remanufactured with new CNC control - 1989

المواصفات

تحويل المواصفات للمتري
قطر المنضدة
60 "
الأرجحة
66 "
ارتفاع الشغل U/R
70 "
القدرة
60 hp
RPM
272 rpm
CNC تحكم
CNC (Fanuc 11-TTF)

1989 Giddings & Lewis Model B-8 60 Inch Table CNC VTL Remanufactured & Retro-Fitted
With Fanuc 11TTF CNC 4-Axis Control and Installed with All Options Included.!.

Main Specifications:
Table Size - 60" Combination Table.
Max O.D. swing - with sidehead - 66"
Max O.D. swing - above sidehead - 72"
Max clearance from facing tool tip in
pentagon to top of table - 70" this is an absolute dim.
Max clearance from facing tool tip in
pentagon to top of jaws - 64" this is an absolute dim.
Chuck type - (4) independent jaws
Table speeds - 3 - 68 RPM + 12 - 272 RPM
One head on rail - Pentagon turret
Sidehead - Square turret

Travels:
Pentagon turret, x axis - full rail
z axis - 36"
Sidehead u axis - 57.62
w axis - 25.5
Feeds:
Rapid traverse (all 4 axes) - 120- IPM
Cutting feed rate (all 4 axes) - .01" - .100"/REV
Ball screw size (all 4 axes) - 3" diam
Electrics - 460/3/60
Drive motor - 60hp
CNC Control - Fanuc 11TTF, 4 axis simultaneous control,
pendant mount
Lube system - Trabon
Ways - Hardened and ground
Enductosyn scales
Chip conveyor
Accuracies - .0005"/ft - .001" full stroke; repeatability .0003"
Original year built - 1976 Remanufactured with new CNC control - 1989

Special Price:............................ $ Please Email or Call.

I thank you and look forward to reviewing any questions and Interest.

Sincerely,

Mark V. Murphy

Murphy Machinery Sales, Inc.
