AMADA LC-4020F1NTقاطعات الليزر

بطاقة الهوية
421608
علامة تجارية
موديل
السنة
2012
الموقع
New York
الولايات المتحدة الامريكية
رقم المخزن
11051
11051
صور ( 6 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على AMADA LC-4020F1NT ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
421608
علامة تجارية
موديل
السنة
2012
الموقع
New York
الولايات المتحدة الامريكية
رقم المخزن
11051

المواصفات

تحويل المواصفات للمتري
ورقة-W
60 "
ورقة-L
120 "
وات
6000 w
حركة X
168 "
حركة Y
81 "
حركة Z
3.94 "

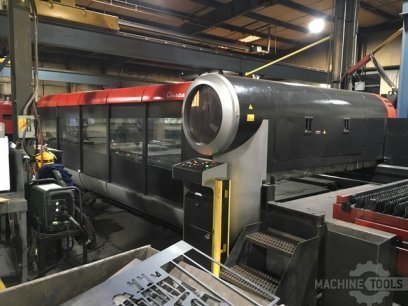

4000 WATT AMADA GEMINI LC4020F1NT FLYING OPTIC LASER SYSTEM
MFG:2012 - INSTALLED:2013 - APPROXIMATELY 20,750 HOURS

System Specifications

Motion Package - LC4030F1NT - 160" x 80" Table
Laser Resonator - Fanuc Model AF4000iB
CNC Controller - AMNC-F

Motion Package:
Travel Method - Stationary Table, X, Y and Z-Axis
Control Method - X, Y and Z Simultaneous 3 Axis Control
Drive Motors - Fanuc Linear Drive Motors
Maximum Sheet Size - 80" (Y) x 160" (X)
Maximum Axis Travel - 80" (Y) x 168" (X) x 3.94" (Z)
Maximum axis Positioning Speed (X, Y) - 4,724 inches per minute
per axis (6,681 inches per minute 45 degree vector.)
Maximum Speed Z-Axis - 4,724 inches per minute
Acceleration - X=1.5G, Y = 1.5G Z = 3G XY Simulaneous = 2.12G
Positioning Accuracy - +0.0004" Overall
Maximum Maerial Weight - 3,000 lbs.)
Assist Gas - 4 Ports with NC Pressure Control
Machine Footpring - 456" x 192"
Machine Weight - 13 Metric Tons (shuttle Table is separate)
Electrical Requirements - 200V, 3 Phase, 60Hz

CNC Controller:
Model - AMNC-F
Display - LCD Color Graphics Display
Control Function - X, Y, Z-Axis Simultaneous and Focus Lens B-
axis, Adaptive Optic and Laser Power Control (CW, Gated Pulse,
Pierce Routines etc.)
Data Input Method - Manual (MDI, Edit, RS-232 DNC, or 3 1/2" pc
Compatible disk, CD/DVD disk, USB, Ethernet, PCMCIA
Minimum Command Unit - O.0001" (X, Y, Z)
Minimum Travel Unit - 0.0001" (X, Y, Z)
Standard Memory - 2mb
Compact Flash Drive - 2GB
Operating Modes - Automatic and Manual
Display Modess - Program Contents, Position Information, Program
Check, Settings, Parameters, Beam Diameter Compensation, Assist
GAs Status, Self Diagnostics, maintenance Reminders.
Interlock Displays - Cooling Water Status, Gass Pressure Status,
Vacuum Status, Turbo Blower Malfunction, Shutter Satus, Beam
Power, Resonator Discharge, Door Open.
Electrical Requirements - 200V 3 Phase, 60HZ

Laser Resonator
Model - Fanuc AF400iB
Resonator Style - Solid State RF Excited, Fast Axial Flow CO2
CW output Power - 4000W
Peak Pluse Output Power - 5000 W
Power Stability - +2%
Laser Wave Length - 10.6
Laser Power Mode Selection - CW, Gated Pulse (CNC Controlled)
Laser Beam Mode Output - Low Order Mode
Beam Diameter at Exit - Less than 27mm
Beam Divergence - Less thank 2mrad Full Angle
Pulse Frequency - 5-2000hz
Pulse Duty - 0-100%
Lser Gas - C02: He: N2 *5%: 60%: 35% ratio by volume)
Laser Gas consumption - 10 liters per hour (0.35 cubic feet per
hour)
Chiller Water Requirement - > 160 liters per min.
Circular Polarizer - Yes
Interlocks - Electrical, Mechanical, Gases and Chiller
Electrical Requirements - 208 VAC, 3 Phase, 60HZ
Electrical Power Consumption - 55VA max.

Chiller:
Chiller Cooling Capacity - 15 tons - (180,000 BTU/hr)
Electrical Requirements - 208 VAC, 3 Phase, 60HZ, 29.1 kVA

Dust Collector:
Model - Torrit, or equivalent
Discharge Port Size - 11.8" Diameter
Power Requirements - 460 VAC, 3 Phase, 60HZ, 17kVA
