AMADA GEMINI FO4020NTقاطعات الليزر

بطاقة الهوية
421627
علامة تجارية
موديل
السنة
2010
الموقع
New York
الولايات المتحدة الامريكية
رقم المخزن
11063

المواصفات

تحويل المواصفات للمتري
وات
4000 w
حركة X
144 "
حركة Y
72 "
حركة Z
7.8 "
CNC تحكم
CNC (FANUC 16IL)

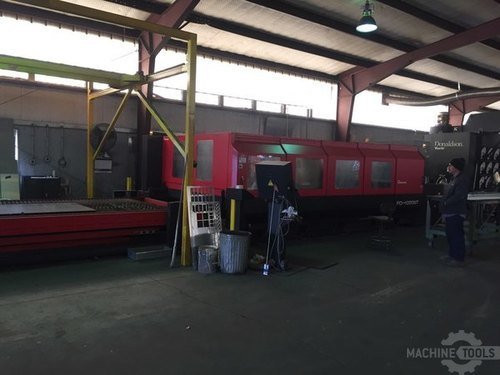

4000 WATT AMADA GEMINI FO4020NT FLYING OPTIC, HIGH SPEED, DUAL PALLET
LASER SYSTEM W/ APPROX. 13,000 ORIGINAL HOURS
MANUFACTURED: 2010

FO 4020NT Standard Features

The FO 4020NT is designed and engineered to reliably and economically cut all
types of material in a full range of thicknesses.
Maximize utilization with minimal setup between jobs
High speed processing of thin and thick materials
Operator-friendly Windows based network compatible control
X-Axis "dual drive" rack & pinion gantry for precise location at the fastest
speed
High-speed pallet shuttle
Cast iron frame for superior stability
Water Assisted Cutting System (WACST) uses an adjustable water mist to absorb
heat generated by the cutting process
6' x 13' maximum sheet size
3150 IPM maximum X- and Y-axis speed (4454 IPM max. at 45 vector)
2362 IPM maximum Z-axis speed
Fanuc 160iL 32-bit control
4000 watt CW laser sources utilizing the latest technology to improve optic
life.

Technical Specifications

Motion Package
Travel Method Stationary table, X, Y and Z-axis movement for cutting head
Control Method X, Y and Z simultaneous 3 axis control
Drive Motors Fanuc AC servo motors
Maximum Sheet Size 80" (Y) x 160" (X)
Maximum Axis Travel 80.7" (Y) x 174" (X) x 7.8" (Z)
Maximum Axis Positioning Speed 3,150 inches per minute (80m/min) per axis
(4,554 inches per minute 45 vector)
Maximum Speed Z-Axis 2,362 inches per minute
Positioning Accuracy 0.0004"/20"
Maximum Material Weight 3,454 lbs.
Assist Gas Automatic 4 ports with NC pressure Control
Machine Footprint 483" x 124"
Machine Weight 12 Metric Tons
Electrical Requirements 208V, 3 Phase, 60Hz
Laser Power 4000 watts
CNC Controller
Model AMNC-F
Display LCD Color Graphics Display
Control Function X, Y, Z-Axis Simultaneous and Focus Lens B-axis, Adaptive
Optic and Laser Power control (CW, Gated Pulse, Pierce Routines etc.).
Data Input Method Touch screen, Keyboard, Ethernet, Wireless, CD, USB, 3"
Floppy disk
Minimum Command Unit 0.0001" (X, Y, Z)
Minimum Travel Unit 0.0001" (X, Y, Z)
Standard Memory 2 MB
Hard Drive 10 GB
Operating Modes Automatic and Manual
Display Modes Program Contents, Position Information, Program Check, Settings,
Parameters, Beam Diameter Compensation, Assist Gas Status, Self Diagnostics +
Interlock Displays Cooling Water Status, Gas Pressure Status, Vacuum Status,
Turbo Blower Malfunction, Shutter Status, Beam Power, Resonator Discharge,
Door Open, WACS.
