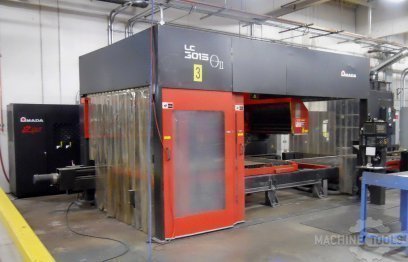

AMADA THETA LC3015CIIقاطعات الليزر

بطاقة الهوية
421647
علامة تجارية
موديل
السنة
2003
الموقع
New York
الولايات المتحدة الامريكية
رقم المخزن
10918

المواصفات

تحويل المواصفات للمتري
ورقة-W
60 "
ورقة-L
120 "
وات
4000 w

4,000 WATT AMADA THETA LC 3015 II 5-AXIS LASER SYSTEM W/EZ CUT NITROGEN
APPROX:34,000 HOURS - 24K TURBO BLOWER INSTALLED @ 22,575 HOURS

SPECIFICATIONS:
AXIS TRAVEL:
X TRAVEL................................. 60" (OPTIONAL 120")
Y TRAVEL................................. 121" (OPTIONAL 240"
Z TRAVEL................................. 20"
U TRAVEL................................. 135 DEG. HEAD TILT
V TRAVEL................................. 370 DEG. HEAD ROTATION
AXIS SPEED:
X & Y SPEED.............................. 3,150 IPM
Z SPEED.................................. 2,165 IPM
U & V SPEED.............................. 250 DEG. PER SECOND
POWER REQUIREMENT........................ 80 KVA (NOT INC. ANCILLARY COMP.)
MAX. MAT. THICK. FOR PROD. QUANTITIES:
FLAT STEEL:
DIMENSION................................ 5' X 10'Y (OPT. 10' X 20')
THICKNESS................................ UP TO 5/8" MILD STEEL
UP TO 1/2" STAINLESS STEEL
UP TO 1/4" ALUMINUM
FORMED SHEET:
HEIGHT................................... UP TO 12"
LENGTH (X AXIS).......................... UP TO 102"
WIDTH (Y AXIS)........................... UP TO 43"
PIPE:
PIPE SECTION............................. UP TO 13" ROUND DIAMETER
OR 9" SQUARE PIPE
LENGTH................................... UP TO 118"
LASER POWER.............................. 4000 CW (OTHER LASER POWERS ARE
AVAILABLE)
MACHINE SIZE (LXWXH)..................... 336" X 145" X 106"
(NOT INCLUDING COMPONENTS)
