MITTS & MERRILL 8Aتفتيح مجارى الخوابير

بطاقة الهوية
422011
علامة تجارية
موديل
حالة
مستعملة - جيد
الموقع
Pennsylvania
الولايات المتحدة الامريكية
رقم المخزن
18008
الثمن
18008
صور ( 10 )
بطاقة الهوية
422011
علامة تجارية
موديل
حالة
مستعملة - جيد
الموقع
Pennsylvania
الولايات المتحدة الامريكية
رقم المخزن
18008
الثمن

المواصفات

تحويل المواصفات للمتري
عرض مجرى الخابور
4 "
طول مجرى الخابور
50 "

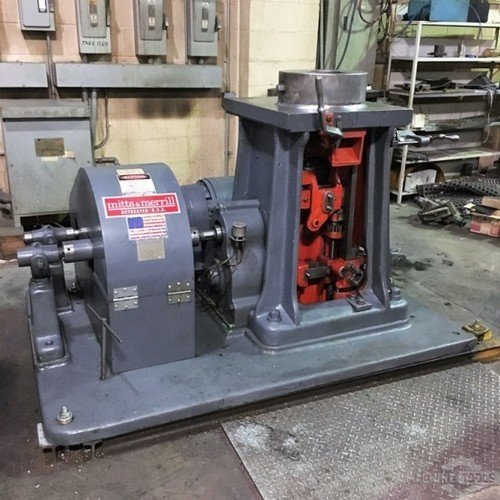

MITTS & MERRILL 8A KEYSEATER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $39,500.00

HMC Stock No. 18008
Machine Serial No. Unknown
Machine Model No. 8A
New Date: Unknown

Maximum Keyway Width: 4"
Maximum Keyway Length: 50"
Largest Standard Post: 6" Diameter
Largest Bore Possible to Keyway: 18"
Floor Line to Table Top: 40"
Depth of Pit Required: 58"
Opening in Floor Required: 32" x 20" x 58" Deep
Cutting Speed: Rate Unknown
Return Speed: Rate Unknown
Table Top Size: 22-1/2" x 26" FB
Automatic Mechanical Infeed of Cutter: 0.002" to 0.010" Per Stroke
Maximum Tool Infeed Depth: 7"
Push Button Start Stop Controls
Mechanical Gear Driven System
Ram has Central Lubrication System
14-1/2" Diameter Collar for Post Mounting Built into Table Top
Hole in Mounting Post: 6" Diameter with 4-1/4" Wide Slot for Cutter
Overall Floor Area Required: 65" x 74"
TOOLING:
(1) Tool Post for 2-1/2" Cutter, 3-3/4" Dia. x 23" Long with 6" Dia. x 6-1/2" Long Base
(1) Tool Post for 3" Cutter, 5" Dia. x 32" Long with 6" Dia. x 6-1/2" Long Base
(1) Tool Post for 4" Cutter, 6" Dia. x 68-1/4" Long
(1) 4" Wide Wedge and (1) 4" Wide Cutter Bar
(1) 2-1/2" Wide Wedge and (1) 2-1/2" Wide Cutter Bar
(1) 1-1/4" Wide Wedge and (1) 1-1/4" Wide Cutter Bar
(6) Assorted Work Collars and (16) Assorted Cutting Tools
7-1/2 HP Motor, Wired for 3 Phase, 60 Hz, 220 / 440 Volts
Presently Wired for 440 Volts
Overall Size of Machine Laid Over For Shipping:
Machine: 72" Long x 73" Wide x 65" High x 7,000 Lbs.
Skid of Tooling: 80" x 48" x 12" High x ? Lbs.
