AWEA BM-1600مراكز التجهيز العمودي

بطاقة الهوية
422092
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2005
رقم المسلسل
5033
الموقع
California
الولايات المتحدة الامريكية
رقم المخزن
1580

الوصف

“This One Owner Machine has very low Cutting Hours, 50 Taper, 24 tool Side Mount Tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition."

المواصفات

تحويل المواصفات للمتري
X
63 "
Y
31.5 "
Z
31.5 "
القدرة
35 hp
RPM
6000 rpm
# ATC
24
الجدول-W
31.5 "
الجدول-L
67 "
انحناء
50
CNC تحكم
CNC (Fanuc 18i-MB)

AWEA BM-1600 Specifications:
Travels:
X-Axis: 63.0"
Y-Axis: 31.5"
Z-Axis: 31.5"
Spindle Nose to Table (Min.- Max.): 7.87" - 39.3"
Spindle Nose to Column: 35.4"

Table:
Length: 67"
Width: 31.5"
Max Weight on Table: 4400 lbs
T-Slot no. & Width: 5 X 0.7"

Gear Head Spindle:
Taper Size: 50
Speed Range: 60 - 6,000 RPM
Spindle Power: 35 HP

Feed rates:
Rapid X,Y & Z: 788 inch/P.M
Cutting Feedrate: 315" inch/ P.M

Automatic Tool Changer:
50 Taper
Capacity: 24
Max Tool Weight: 33 lbs
Max Tool Length: 11.8"
Max Tool Dia.: 7.87"

General:
Air Required: 90 psi, 4 scfm
Power: 205-220v / 50kva / 3-Phase
Overall Dimensions: 185" x 128" x 122" High
Weight: 35000 lbs

AWEA BM-1600 Features:
Fanuc 18i-MB CNC Control
50 Taper Geared Head Spindle
24 Tools Side Mount Bidirectional Tool Changer
PCMCIA Card Slot
Box Way Construction All Axis
Powerful 35 hp high torque spindle motor
Spindle Orientation
Rigid Tapping
Electrical Panel AC
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Chip Conveyor
Work light
Books and Manuals

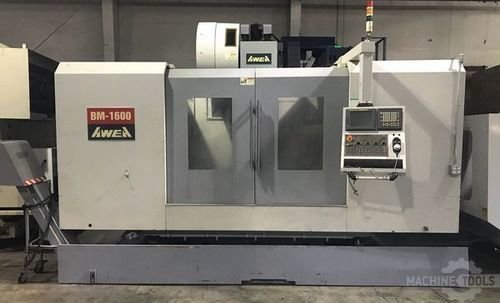

AWEA BM-1600 Comes as shown in pictures.
