GIDDINGS & LEWIS VTC 2500عمودي مملة ميلز (incld VTL)

بطاقة الهوية
422536
علامة تجارية
موديل
السنة
2005
الموقع
Michigan
الولايات المتحدة الامريكية

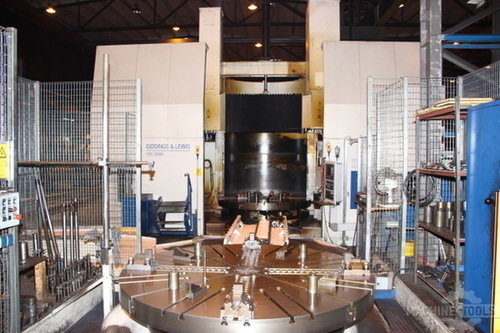

G and l vtc 2500 frt view far 2 18
صور ( 6 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على GIDDINGS & LEWIS VTC 2500 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
422536
علامة تجارية
موديل
السنة
2005
الموقع
Michigan
الولايات المتحدة الامريكية

الوصف

Excellent condition, under power. Delivery and installation services available.

المواصفات

تحويل المواصفات للمتري
قطر المنضدة
98.43 "
الأرجحة
106.3 "
ارتفاع الشغل U/R
98.43 "
القدرة
100.6 hp
RPM
200 rpm
CNC تحكم
CNC (Siemens 840D)

Specification
2005 Giddings & Lewis
Model VTC 2500
Dual ram, live spindle Vertical turning lathe
2/2/18

Table Diameter............................................................................2.5M
Maximum Turning Diameter........................................................2.7M
Maximum Height table to ram.....................................................2.5M

X axis travel.................................................................................3.1M
Z axis travel.................................................................................1.75M
V axis travel (hydraulic driven, mechanically clamped)..............1.5M
C axis..........................................................................................360,000 positions
Min distance between ram centerlines........................................1M
Ram overlap................................................................................700mm

Right side ram/live spindle
Ram size.....................................................................................250mm sq
Turning tool.................................................................................wedge lock 2:1 taper
Live spindle nose........................................................................KM 80
Spindle speed.............................................................................1-4000 Rpm
Spindle motor..............................................................................33 Kw
Ram travel (right of center).........................................................1.55M

Right angle spindle attachment
Spindle speed..............................................................................1-2200 Rpm

Left side ram
Ram size.....................................................................................250mm sq
Turning tool.................................................................................wedge lock 2:1 taper
Ram travel (left of center)...........................................................1.55M

Table Turning Performance:
Table Turning Motor.....................................................................75 Kw
Turning Speeds (2 Gear Ranges)................................................1-200 Rpm
Load capacity...............................................................................20 tons

2 Pallet changer
Exchange time....................................................................................2 min

CNC....................................................................................................Siemens 840D

Feedrate
X axis Rapid and programmed............................................................0-20M/min
Z Axis Rapid and programmed............................................................0-20M/min
V axis...................................................................................................800mm/min

ATC capacity (Vert and Horizontal position)
Turning tools (each ram)......................................................................8
Milling tools (right ram).........................................................................60

Equipped With:
Right angle live spindle attachment (ATC serviceable)
Renishaw touch probe (right ram)
Siemens hand held remote control
Heidenhain absolute linear encoders X, Z, V (two)
Thru tool coolant (both rams)
Lift up Chip Conveyor
Full Machine Enclosure
Light curtain around pallet changer
