GILDEMEISTER CTX-310مخارط CNC

بطاقة الهوية
422556
علامة تجارية
موديل
النوع
حالة
مستعملة - جيد
السنة
2007
الموقع
اسبانيا
رقم المخزن
ES-TUR-GIL-2007-00001

الوصف

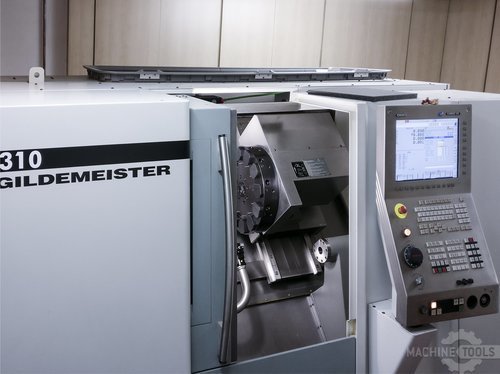

This Gildemeister CTX 310 Lathe was manufactured in 2007 in Italy and has a working record of only 545 production hours since then. This machine is operated through a FANUC 32i Control unit and has exclusively worked with aluminium, producing supplies for the furniture industry. Beside the perfect condition of the machine, which can be considered as new, it stands out due to its tiltable spindle and its automatic tool changer. Additional tools are included in the delivery.

المواصفات

Gildemeister CTX 310 Lathe

Production Hours: 545

General Data:
Measurements width: 4000 mm
Measurements depth: 1563 mm
Measurements height: 1730 mm
Machine weight: 3629 kg

Control Unit:
Brand: FANUC
Model: 32i

Main Drive:
Number of spindles: 1
Spindle speed range: 6000 1/min
Spindle motor power: 12 kW
Spindle bore: 73 mm

Movement:
X-Axis Movement: 213 mm
X-Axis Working Feed: 24 mm/min
X-Axis Feed Force: 450 daN
Z-Axis Movement: 450 mm
Z-Axis Working Feed: 30 mm/min
Z-Axis Feed Force: 450 daN

Workpiece:
Workpiece drm over bed: 500 mm
Workpiece drm over support: 375 mm
Workpiece drm: 246 mm
Workpiece Z: 445 mm
Workpiece weight: 110 kg

Turret:
Number of turrets: 1
Number of tool slots: 12

Media:
Main electronic connection: 400 V / 50 Hz
Power consumption: 24 kVA
Lubrication tank: 175 L
Oil tank: 1.8 L
Internal cooling: Yes

Additional Equipment:
* Tools
