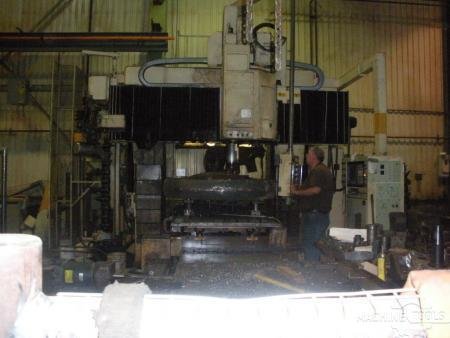

OKUMA MCV-16Aالعملاقة الآلات مراكز (incld. بريدج وعمود مزدوج)

بطاقة الهوية
422734
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1989
الموقع
Iowa
الولايات المتحدة الامريكية
عودة السياسة
كما هو

الوصف

Excellent running machine, currently under power and ready for inspection. You Tube Video: http://www.youtube.com/watch?v=j9w7x48DMpk&feature=channel.page

المواصفات

تحويل المواصفات للمتري
X
118 "
Y
63 "
Z
15.7 "
القدرة
20 hp
RPM
1300 rpm
الجدول-W
47 "
الجدول-L
122 "
# ATC
50
انحناء
CAT 50
الأبعاد
166” x 315”
الوزن
56,000 lbs
CNC تحكم
CNC (OSP 5000M)

Model #: MCV-16A
Control: Okuma OSP 5000M
Year of Mfg: 1989
“X” Travel: 118”
“Y” Travel: 63”
“Z” Travel: 15.7”
Effective Width Between Columns: 65”
Distance From Spindle Nose to Table: 0 -53”
Table Size: 47” x 122”
Table Feed: 3.5 HP
Working Surface: 39” x 110”
Height From Floor: 27.6”
Feed Rate: 400 IPM
Load Capacity Max: 17,600 lbs.
Spindle Diameter: 3.95”
Spindle Taper: No. 50
Number of Spindle Speed Changes: 12
Spindle Speeds: 30 – 1300 rpm
Spindle Drive: 20 HP
Spindle Head Feed Rate: 2.4 HP
Quill Diameter: 7.28”
Quill Feed: 2.4 HP
Feed Rate: .1 – 157 IPM
Rapid Traverse: 200 IPM
Spindle Head Feed Rate: .1 – 157 IPM
Spindle Rapid Traverse: 400 IPM
Cross Rail Traverse Length: 39.4”
Cross Rail Traverse Speed: 50/60 HZ 420/500
Cross Rail Feed: 5HP
ATC Taper: CAT 50
ATC Number of Tools: 50
Machine Height: 165.4”
Floor Space: 166” x 315”
Approximate Weight: 56,000 lbs

Specs are taken from Okuma Brochure and subject to customer verification.

Machine is also has a two pallet changer, and is currently under power and ready for inspection at our facility in Fairfield, IA
