NICOLAS CORREA FP-40/50المسوي نوع ميلز

بطاقة الهوية
422845
علامة تجارية
NICOLAS CORREA
موديل
FP-40/50
الموقع
الولايات المتحدة الامريكية
رقم المخزن
28657

الوصف

Nicolas Correa FP40/50, X-196",Y-127",Z-39",98" B.C, 40-4000 RPM, BT-50, Heidenhain TNC-530, #28657

المواصفات

تحويل المواصفات للمتري
الجدول-W
78.74 "
الجدول-L
196.9 "
المسافة بين الجرابات
98.42 "
موتور
29.5 hp
RPM
4000 rpm
CNC تحكم
CNC (Heidenhain TNC-530 CNC Control)

Reference #28657

Nicolas Correa FP-40/50 5-Axis CNC Double Column Gantry Mill
Age: 1998/2018
Model: FP-40/50

FEATURES:
Heidenhain TNC-530 CNC Control
2-Axis Continuous Milling Head
Fully Refurbished

CAPACITIES:
Table Travel, X-Axis .................. 196.85"
Milling Head Travel, Y-Axis............ 127.95"
Ram Travel, Z-Axis .................... 39.37"
Head Tilt, A-Axis (Continuous) ........ +100/-90 Degrees
Head Rotation, C-Axis (Continuous) .... +/- 200 Degrees
Distance Between Columns .............. 98.42"
Table Size ............................ 196.85" x 78.74"
Distance, Spindle to Table Surface .... 9.84"-41.33"
Table Weight Capacity ................. 55,115 Lbs.
Spindle Diameter ...................... 3.93"
Spindle Taper ......................... BT-50
Spindle Speeds (2-Ranges) ............. 40-4000 RPM
Spindle Drive Motor ................... 29.5 HP
Feed Rate, X/Y/Z Axes ................. .0787-196.85 IPM
Rapid Traverse Rate, X-Axis ........... 283.46 IPM
Rapid Traverse Rate, Y/Z-Axes ......... 472.4 IPM
Approximate Machine Weight ............ 90,000 Lbs.

EQUIPPED WITH:
Heidenhain TNC-530 CNC Control
Continuous 2-Axis CNC Milling Head
60 Station Automatic Tool Changer
Manual Jog Pendant

Machine Will Be Fully Mechanically Refurbished at Time of Order Including:
-All Mechanical Components
-Installation of New Heidenhain TNC-530 CNC Control
-Inspection of All Electrical Components
-Purchase includes 6-Month Warranty on Mechanical Parts

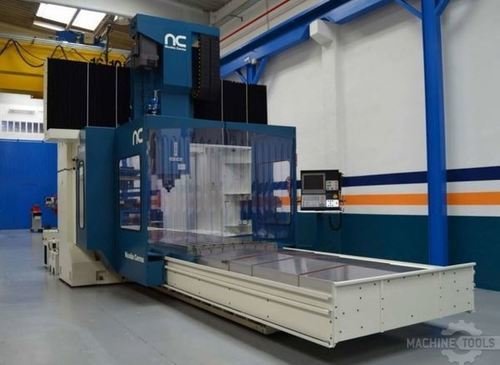

-Photo is Representative of Catalogue Photo. For Advertising Purposes Only
