BULLARD CUTMASTER 42عمودي مملة ميلز (incld VTL)

بطاقة الهوية
422977
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1951
رقم المسلسل
25778
الموقع
Texas
الولايات المتحدة الامريكية
رقم المخزن
B600667

المواصفات

تحويل المواصفات للمتري
قطر المنضدة
42 "
الأرجحة
54 "
ارتفاع الشغل U/R
37 "
القدرة
30 hp
RPM
200 rpm
الأبعاد
118" X 118" X 120"
الوزن
39,000 Lbs

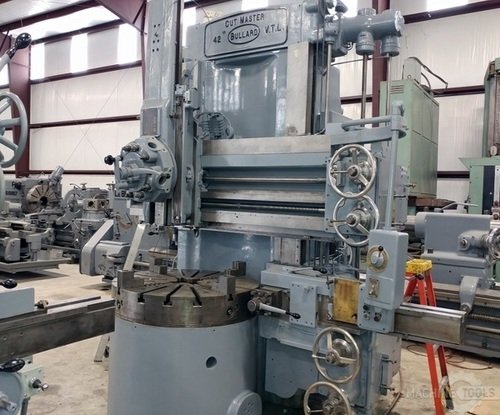

42" Used Bullard (Cut Master) Vertical Turret Lathe Ref.#B600667
Model: 42" Cut Master
Serial No. New:

Table Size...42" 4-Jaw
Swing Side Head Above Table...45"
Swing Side Head Below Table...54"
Cross Rail Travel...25"
Height Under Rail...37"
Table Speed...4.1 To 200 Rpm's
Feeds....026 To 500 IPR
Main Motor...30 Hp.
Turret Head Travel Left To Right...30-3/8"
Turret Head Swivel...30 Degrees
Turret Ram Head Turret Travel Up & Down...37"
Max. Distance Table To Turret Face...48-1/4"
Turret Head Position...5
Side Head Travel In & Out...21"
Side Head Travel Up & Down...37"
Machine Weight...39,000
Machine Floor Space...118"X118"
Machine Height...120"
Power Elevation Of Rail...Yes
Rapid Traverse To Both Head...Yes
Built In 4 Way Tool Post On Side Head...Yes
Side Head...Yes
Turret Head...Yes

Note:
Note: Machine Has Been Cleaned, Painted And Cycled. All Feed And Rapid Shafts Seals Have Been Replaced. Hand Wheel Seals Have Been Replaced, Gear Boxes Have Been Cleaned And Checked. Hydraulics And Main Motor Have Been Reconditioned.

Condition: Good
