FADAL VMC-5020Aمراكز التجهيز العمودي

بطاقة الهوية
423098
علامة تجارية
موديل
حالة
تستخدم - تمت إعادة تشكيلها
السنة
2018
الموقع
California
الولايات المتحدة الامريكية

الوصف

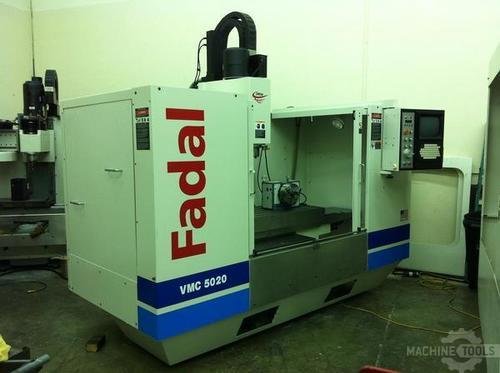

Why buy a used Fadal when you can buy rebuilt? All our machines go through the same process for rebuilding which include a complete disassembly and a component based inspection and replacement, with a parts warranty to keep your mind at ease. This Fadal VMC-5020A HT is optioned well with a 30 tool automatic servo tool changer, High Torque, and an AC Servo System. Contact us to see what machine we have that can fit your needs!

المواصفات

تحويل المواصفات للمتري
X
50 "
Y
20 "
Z
20 "
القدرة
22.5 hp
RPM
7500 rpm
# ATC
30
الجدول-W
20 "
الجدول-L
56 "
انحناء
40
أكسات
3
الأبعاد
115" x 84" x 109"
الوزن
10,500 LBS
CNC تحكم
CNC (FADAL 88HS)

X-Axis Travels: 50"
Y-Axis Travels: 20"
Z-Axis Travels: 20"
Table Size: 56.5" X 20”
Table Capacity: 4,120 LBS
Rapid Traverse (X/Y): 900 IPM
Spindle Speed: 7,500 RPM
Spindle Taper: CAT40
ATC, Number of Tools: 30
Spindle Drive Motor: 22.5 HP
Spindle Torque: 220 FT/LBS
Control: Fadal 88HS (Fadal MP available)
Dimensions: 115" x 84" x 109"
Weight: 10,500 LBS

STANDARD OPTIONS:

• 30 Tool ATC
• Servo Turret ATC
• High Torque
• Rigid Tapping
• 7,500 RPM Spindle
• USB Port
• Cool Power
• High Speed CPU
• Graphics
• Flood Coolant
• Manuals

AVAILABLE OPTIONS:
• Top Sheet Metal Cover (Chip Guard)
• Heidenhein Scales (X/Y)
• Very High Torque Spindle Motor (30 HP)
• Chip Conveyor
• Fadal MultiProcessor (MP) Control
• Remote Manual Pulse Generator
• Renishaw Touch Probes
o Tool Setter Probe
o Work Piece Probe
• CRT-to-LCD Upgrade
• Coolant Through Spindle
• Rotary Tables (New & Refurb)
o VH5C
o VH65
o VH175
o VH225
o VH275
o TR65 (5-Axis)
o V300
o Rotary Accessories
• Servo Package (4th/5th Axes)
• Single Phase Transformer
• Extended Parts Warranty
• Auto Aim Servo Coolant
• Midaco Pallet Changer
• Tooling Packages
• Kurt Vises
