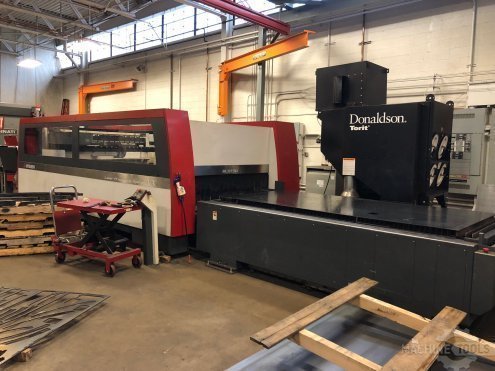

MITSUBISHI 3015 NXقاطعات الليزر

بطاقة الهوية
423400
علامة تجارية
موديل
السنة
2009
الموقع
New York
الولايات المتحدة الامريكية
رقم المخزن
11093
11093
صور ( 7 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على MITSUBISHI 3015 NX ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
423400
علامة تجارية
موديل
السنة
2009
الموقع
New York
الولايات المتحدة الامريكية
رقم المخزن
11093

الوصف

6000 WATT MITSUBISHI 3015NX-60CF-R CO2 LASER MFG:2009 - 8,082 DISCHARGE HOURS (FEB. 2018) Machine structure: Precision rack and pinion with linear Z-axis Travel drive method: X,Y,Z simultaneous 3 axes Control method: X,Y, and Z simultaneous 3 axis control X-Axis stroke: 125.98" Y-Axis stroke: 62.99" Z-Axis stroke: 4.7" Maximum work piece size: 120.08" x 60.04" Maximum processing feed rate: 2360 inches per minute Maximum work piece weight: 2050 lbs. Table pass height: 33.5" Rapid travel speed Single axis; 4724 inches per minute Simultaneous: 6680 inches per minute Minimum command input: .001 mm/.0001" Drive motor type: Intelligent AC servo Hard disc drive capacity: 10.0 GB Program memory capacity: Standard 5000m/Approximately 2 MB, number of register able programs 400 CO2 Laser control Power control: output power, frequency, duty Operation control: shutter open/close, beam on/off, laser gas change, etc. Processing machine control Drive method: X, Y, Z (simultaneous control) Position detection method: encoder Minimum command unit: .001mm/.0001" Program input method: USB, computer link, Ethernet LAN Operation Method: memory operation/HD direct operation Laser resonator specifications Model: Mitsubishi 60CF-R Excitation method: 3-axis cross flow, SD Hard disc drive capacity: 10.0 GB Program memory capacity: Standard 5000m/Approximately 2 MB, number of register able programs 400 CO2 Laser control Power control: output power, frequency, duty Operation control: shutter open/close, beam on/off, laser gas change, etc. Processing machine control Drive method: X, Y, Z (simultaneous control) Position detection method: encoder Minimum command unit: .001mm/.0001" Program input method: USB, computer link, Ethernet LAN Operation Method: memory operation/HD direct operation Laser resonator specifications Model: Mitsubishi 60CF-R Excitation method: 3-axis cross flow, SD Hard disc drive capacity: 10.0 GB Program memory capacity: Standard 5000m/Approximately 2 MB, number of register able programs 400 CO2 Laser control Power control: output power, frequency, duty Operation control: shutter open/close, beam on/off, laser gas change, etc. Processing machine control Drive method: X, Y, Z (simultaneous control) Position detection method: encoder Minimum command unit: .001mm/.0001" Program input method: USB, computer link, Ethernet LAN Operation Method: memory operation/HD direct operation Laser resonator specifications Model: Mitsubishi 60CF-R Excitation method: 3-axis cross flow, SD Control method: Power feedback Power stability: +/- 1% Beam mode: Low-order (main component TEM01) Beam outer diameter: 1.06" Beam divergence: Approximately 3.5" or less (total angle) Wave length: 10.6 microns Frequency setting range: 10~3000 % Duty range: 0~100 % of rating Resonator unit dimensions: 131.9" L x 78.1" H x 31.5" wide Resonator unit weight: 6615 lbs. Rated output power (CW): 6000 watts Composition CO2:CO:N2:He: 8:4:60:28 Consumption amount: 4.5 liters per hour Gas sealing time: 24 hours (during rated continuous oscillation)

المواصفات

تحويل المواصفات للمتري
ورقة-W
60 "
ورقة-L
120 "
وات
6000 w
حركة X
125.9 "
حركة Y
62.9 "
حركة Z
4.7 "
CNC تحكم
CNC (M700)

6000 WATT MITSUBISHI 3015NX-60CF-R CO2 LASER
MFG:2009 - 8,082 DISCHARGE HOURS (FEB. 2018)
