GIDDINGS & LEWIS CHIPMASTERتدريبات شعاعي

بطاقة الهوية
423638
علامة تجارية
موديل
السنة
1973
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
156308
الثمن

الوصف

3' Arm Lth 9" Col Dia Giddings & Lewis Chipmaster RADIAL DRILL, Power Elevation, Box Table, #4MT, 5 HP

المواصفات

تحويل المواصفات للمتري
طول الذراع
3 '
ضياء العمود.
9 "
القدرة
5 hp

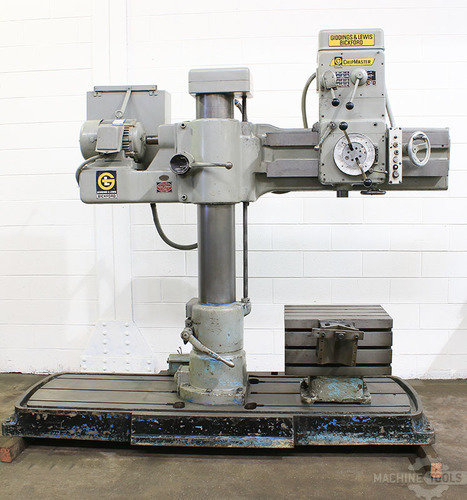

3' X 9" GIDDINGS & LEWIS RADIAL DRILL

MODEL: CHIPMASTER,  S/N: 951-00556-73,  NEW: 1973



SPECIFICATIONS:

MAXIMUM DISTANCE SPINDLE TO COLUMN .. 43"

COLUMN DIAMETER ..................... 9"

FACE OF COLUMN TO CENTER OF SPINDLE . 10-1/2" MIN

VERTICAL TRAVEL OF ARM ON COLUMN .... 28-1/4"

DISTANCE SPINDLE TO BASE MAX/MIN .... 53"/15"

WORKING SURFACE OF FRONT BASE ....... 30" X 53"

WORKING SURFACE OF REAR BASE ........ 30" x 36"

VERTICAL TRAVEL OF SPINDLE IN HEAD .. 10"

TAPER IN SPINDLE .................... #4 MT

SPINDLE FEEDS (4) ................... 4, 8, 14 & 20 IPR

SPINDLE SPEEDS-(9) .................. 60 TO 1,200 RPM

DRILLING CAPACITY ................... 1-1/2"

TAPPING CAPACITY .................... 3/4"

BORING CAPACITY ..................... 3-5/8"

APPROXIMATE WEIGHT .................. 5,000 LBS

OVERALL DIMENSIONS HEAD DOWN .......  7' TALL

                                       3' WIDE

                                       9' LONG

EQUIPPED WITH:

  * POWER FEED

  * POWER ELEVATION OF ARM ON COLUMN

  * T-SLOTTED BOX TABLE

  * DOUBLE SIDED T-SLOTTED BASE

  * COOLANT SYSTEM

  * 5 HORSEPOWER SPINDLE MOTOR



INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE



CONDITION:    ****   EXCELLENT   ****



FOR MORE INFORMATION: Call David at 973-497-7570
