TRUMPF TRUMATIC 5000Rبرج اللكمات

بطاقة الهوية
423817
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2001
الموقع
بولندا
رقم المخزن
PL-PUN-TRU-2001-00001

الوصف

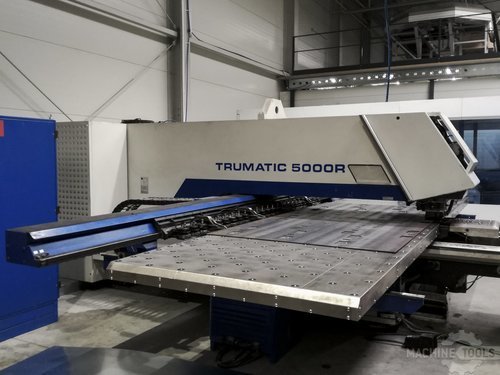

This Trumpf Trumatic 5000 R Turret Punching Machine was manufactured in Germany in 2001 and has a record of only 3865 production hours ever since. Operated through a Trumpf Control unit, the equipment stands in excellent working conditions. Upon request, an additional set of approximately 50 tools can be included with the machine.

المواصفات

تحويل المواصفات للمتري
حمولة
25 T
محطة تارت#
21
CNC تحكم
CNC (SIEMENS SINUMERIK 840D)

Trumpf Trumatic 5000 R Turret Punching Machine

Production Hours: 3865

General Data:
Measurements width: 7500 mm
Measurements depth: 7500 mm
Measurements height: 2500 mm
Machine weight: 17500 kg

Control Unit:
Brand: Trumpfa

Main Drive:
Punching force: 220 kN
Maximum sheet thickness: 6 mm

Movement:
X-Axis Movement: 3000 mm
Y-Axis Movement: 1500 mm

Workpiece:
Workpiece X: 3000 mm
Workpiece Y: 1500 mm

Max Material Thickness:
Steel: 6 mm

Media:
Main electronic connection: 400V / 50 Hz
Power consumption: 29 kVA
Chip conveyor: Yes

Additional Equipment:
* Tools (upon request)
