DECKEL MAHO DMC 63Vمراكز التجهيز العمودي

بطاقة الهوية
423966
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1997
الموقع
بولندا
رقم المخزن
PL-MIL-DEC-1997-00001

الوصف

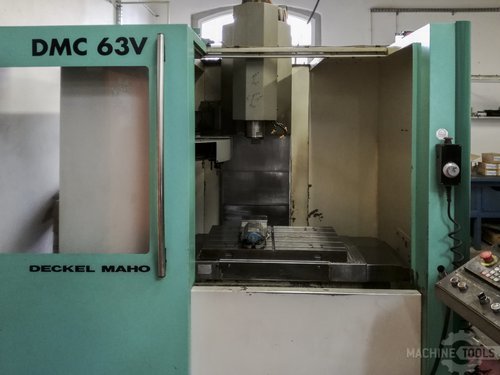

This Deckel Maho Gildemeister DMC 63 V Vertical Machining Center from 1997 was manufactured in Germany and has a working record of only 9261 productions hours since then. This machine is operated through a Siemens SINUMERIK 810D Control unit and comes in very good working conditions due to regular service inspections and its little working hours.

المواصفات

تحويل المواصفات للمتري
X
24.8 "
Y
19.7 "
Z
19.7 "
القدرة
20 hp
RPM
8000 rpm
# ATC
24
الجدول-W
19.75 "
الجدول-L
31.5 "
CNC تحكم
CNC (SIEMENS SINUMERIK 810D)

Deckel Maho Gildemeister DMC 63 V Vertical Machining Center

Production Hours: 9261

General Data:
Measurements width: 3180 mm
Measurements depth: 3410 mm
Measurements height: 2630 mm
Machine weight: 4200 kg

Control Unit:
Brand: Siemens
Model: SINUMERIK 810D

Main Drive:
Number of spindles: 1
Spindle speed range: 8000 1/min

Movement:
X-Axis Movement: 630 mm
Y-Axis Movement: 500 mm
Z-Axis Movement: 500 mm

Workpiece:
Workpiece X: 800 mm
Workpiece Y: 500 mm
Workpiece weight: 500 kg

Table:
Outer length: 800 mm
Outer width: 500 mm

Tools:
Max weight: 7 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Media:
Main electronic connection: 400 V / 50 Hz
Power consumption: 30 kVA
