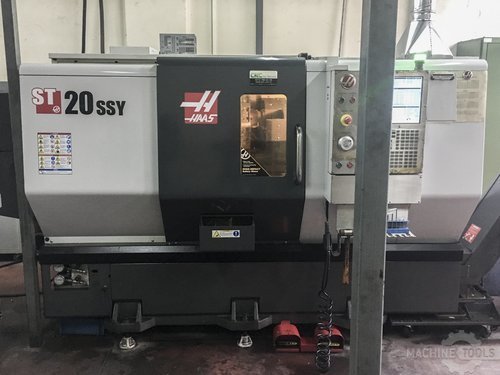

HAAS ST-20SSYمخارط CNC

بطاقة الهوية
424294
علامة تجارية
موديل
النوع
حالة
مستعملة - جيد
السنة
2014
الموقع
تركيا
رقم المخزن
TR-TUR-HAA-2014-00001

الوصف

This HAAS ST-20SSY Lathe from 2014 was manufactured in the United States and has a working record of only 3783 production hours. Controlled through a HAAS Control unit and equipped with a powerful 24-Station Hybrid Turret for up to 12 live tools, this very flexible equipment is able to machine big workpieces. During the past, this machine mostly processed carbon steel and aluminium producing other machine components. Five live tools as well as an original Jorgensen chip conveyer are included in the delivery, a KAMSAN bar loader is available upon request.

المواصفات

تحويل المواصفات للمتري
حجم الظرف
8.3 "
سعة العامود
2 "
أكسات
4
القدرة
30 hp
ماكس RPM
5000 rpm
قطر الخراطة
10 "
الأرجحة
31.75 "
بالقطع طول
21 "
غراب
No
الأدوات الحية
Yes
CNC تحكم
CNC (Haas)

HAAS ST-20SSY Lathe

Production Hours: 3783

General Data:
Measurements width: 4191 mm
Measurements depth: 2464 mm
Measurements height: 2057 mm
Machine weight: 4082 kg

Control Unit:
Brand: HAAS

Main Drive:
Number of spindles: 1
Spindle speed range: 5000 1/min
Spindle motor power: 22.4 kW

Movement:
X-Axis Movement: 236 mm
Y-Axis Movement: 50.8 mm
Z-Axis Movement: 533 mm

Workpiece:
Workpiece drm: 50.8 mm
Workpiece X: 254 mm
Workpiece Y: 521 mm

Turret:
Number of turrets: 24-Station Hybrid (12 VDI; 12 BOT)

Media:
Main electronic connection: 354-488 V / 50 Hz / 3 P
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment:
* KAMSAN Bar loader (upon request)
* Jorgensen Chip conveyer
* 5 Live Tools
