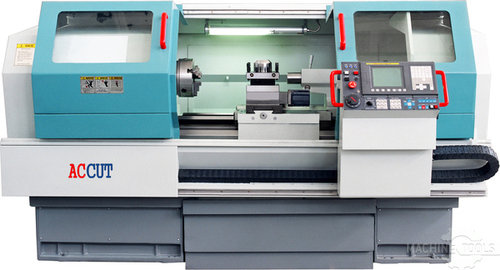

ACCUT L-500/1500CNCمخارط CNC

بطاقة الهوية
424469
علامة تجارية
موديل
النوع
حالة
الجديد في المخزن
الموقع
Shandong
الصين
عودة السياسة
عام واحد
الثمن

الوصف

● Great value and reliability with many standard features to simply operation and increase productivity ● Extra wide 15.7” bed maximizes support for saddle and cross slide assembly for smooth machining, even of large work pieces ● Variable AC spindle drive motor for exceptional machining power ● Automatic three range headstock allows full horsepower at low rpm for more efficient machining of parts requiring low spindle speed ● Control rides on a rail and can be positioned for maximum operator convenience ● Heavy-duty construction with cast iron base ● Ball screws for the X and Z axes are mounted in precision compound bearings for smooth operation and accurate positioning, driven by servo motor ● Anti-friction Turcite-B coating between saddle and bed ways to reduce friction, superior dampening properties for chatter free machining and minimizes bed wear to extend machine life ● Fully enclosed, interlocking guarding to maintain a clean working environment and allow a high rate of chip removal ● Automatic lubrication system maintains proper lubrication of slide ways and ball screws.

المواصفات

تحويل المواصفات للمتري
حجم الظرف
10 "
سعة العامود
3.15 "
القدرة
10 hp
ماكس RPM
1500 rpm
قطر الخراطة
19.7 "
الأرجحة
19.7 "
بالقطع طول
59 "
غراب
Yes
الأدوات الحية
No
الأبعاد
2750*2050*1900mm
الوزن
2440kg
CNC تحكم
CNC (Fanuc 0i TF5)

Capacity Inch Metric
Max. Swing over bed 19.7” 500 mm
Max. Swing over carriage 11.81” 300 mm
Max. Length of workpeice 40” 1500 mm
Width of Guideway 15.7” 400 mm
Headstock
Spindle nose D8 D8
Spindle bore 3.15” 80 mm
Spindle speed 21~150
66~500
162~1500 21~150
66~500
162~1500
Taper of spindle bore MT6 1:20 MT6 1:20
Chuck size 10” 250 mm
Feeding
Frequency conversion motor 10 Hp 7.5 Kw
Travel on X axis 10.23” 260 mm
Travel on Z axis 33.46” 850 mm
Rapid traverse on X axis 196.8 ipm 5 m/min
Rapid traverse on Z axis 393.7 ipm 10 m/min
Repeatability of turret 0.0003” 0.008 mm
Horizontal 4 way turret change time 2.4 s 2.4 s
Vertical 6 way turret change time 3.0 s 3.0 s
Tailstock
Taper of tailstock quill MT5 MT5
Travel of tailstock quill 5.9” 150 mm
Diameter of tailstock quill 2.95” 75 mm
Shipping dimensions
Net weight 4938 lb 2440 kg

Gross weight 6613 lb 3000 kg
Overall dimensions 108.2” x 61” x 74.8” 2750 x 1550 x 1900 mm
