MAZAK LASER-PATH NEW SUPER TURBO X48قاطعات الليزر

صور ( 7 ) / فيديو

علامة تجارية
موديل
LASER-PATH NEW SUPER TURBO X48
بطاقة الهوية
425160
حالة
مستعملة - جيد
السنة
1990
الموقع
إستونيا
رقم المخزن
EE-LAS-MAZ-1990-00001
بطاقة الهوية
425160
علامة تجارية
موديل
LASER-PATH NEW SUPER TURBO X48
حالة
مستعملة - جيد
السنة
1990
الموقع
إستونيا
رقم المخزن
EE-LAS-MAZ-1990-00001

الوصف

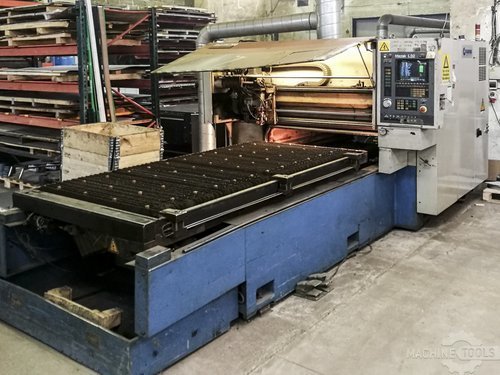

This Mazak LASER-PATH NEW SUPER TURBO X48 Laser Cutting Machine from 1990 was manufactured in Japan and has been operative for 46770 production hours since then. This model is equipped with a Mazak L-32 Control unit and a Panasonic CO2 laser with 1.5 kW laser power. The machine has mainly worked with mild steel sheets of up to 12 mm of thickness during the past and incorporates a chiller in the delivery.

المواصفات

Mazak LASER-PATH NEW SUPER TURBO X48 Laser Cutting Machine

Production Hours: 46770

General Data:
Measurements width: 2600 mm
Measurements depth: 5555 mm
Measurements height: 2400 mm
Machine weight: 8500 kg

Control Unit:
Brand: Mazak
Model: L-32

Main Drive:
Laser power: 1.5 kW
Laser type: CO2
Laser brand: Panasonic

Movement:
X-Axis Movement: 2630 mm
Y-Axis Movement: 1270 mm
Z-Axis Movement: 100 mm

Workpiece:
Workpiece X: 2500 mm
Workpiece Y: 1250 mm
Workpiece weight: 300 kg

Max Material Thickness:
Steel: 12 mm
Stainless steel: 5 mm
Aluminium: 5 mm

Media:
Main electronic connection: 230 / 460 V
Power consumption: 22 kVA
Chip conveyor: Yes

Additional Equipment:
* Chiller
