KITAMURA MYCENTER 1مراكز التجهيز العمودي

بطاقة الهوية
425592
علامة تجارية
موديل
السنة
1993
الموقع
الولايات المتحدة الامريكية
نطاق السعر
$10,001 - $50,000 USD

الوصف

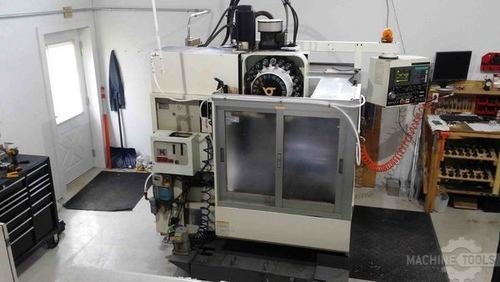

1993 Kitamura Mycenter 1 CNC Vertical Machining Center. Machine is in good shape and can be inspected under power as needed. Options include: Yasnac I-80 CNC control, rigid tap, flood coolant, spindle chiller, LED work light, and an excellent tooling package. Please contact Cris Mulvihill at 602-501-8995 with any and all questions.

المواصفات

تحويل المواصفات للمتري
X
19.9 "
Y
14 "
Z
16 "
القدرة
7.5 hp
RPM
13000 rpm
# ATC
20
الجدول-W
14 "
الجدول-L
30.9 "
انحناء
BT-35
أكسات
3
الأبعاد
96" X 96" X 100"
الوزن
4620 Lbs
CNC تحكم
CNC (Yasnac i-80)

1993 Kitamura Mycenter-1
CNC Vertical Machining Center

Specifications:
Table Size ........................................................................................................................................ 30.9” x 14”
Table Load (Max) ....................................................................................................................... 440 Lbs.
X-Axis Travel ................................................................................................................................................. 20”
Y-Axis Travel ................................................................................................................................................... 14”
Z-Axis Travel .................................................................................................................................................... 16”
Spindle Speed ........................................................................................................................ 13,000 RPM
Spindle Taper ......................................................................................................................................... BT-35
Spindle Motor ......................................................................................................................... 7.5/ 5.5 H.P.
Tool Changer Style ................................................................................ Sidemount / Dual Arm
Rapids (X, Y, Z) .................................................................................................................................. 1,181 IPM
Tool Changer Positions ................................................................................................................. 20 + 1
Machine Dimensions (L x W x H) .............................................................. 96” x 96” x 100”
Machine Weight ......................................................................................................................... 4,620 Lbs.
Equipped With:
Yasnac i-80 CNC Control
Rigid Tapping
Flood Coolant
Spindle Chiller
LED Work light
Excellent Tooling Package Includes
(72) BT-35 Holders, Drill Chuck, Face Mill, End Mill, ER-16
Click Below for Video
https://youtu.be/oteToWLUv3s
Note: Vices & Cutting Tools NOT Included
