ROLLOMATIC 6000XLأداة وكتر المطاحن

بطاقة الهوية
425824
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2005
الموقع
Maine
الولايات المتحدة الامريكية
نطاق السعر
أكثر من $100,001 USD
صور ( 8 ) / فيديو

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على ROLLOMATIC 6000XL ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
425824
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2005
الموقع
Maine
الولايات المتحدة الامريكية
نطاق السعر
أكثر من $100,001 USD

الوصف

This machine is ready to work for you on day one. Includes almost $95,000.00 of tooling! HYDROSTATIC WAYS! 3-axis Loader, Auto Pallet changer, Schunk Collet System. Everything you need.

المواصفات

تحويل المواصفات للمتري
أكسات
6
الأرجحة
1.26 "
المراكز
8 "
القدرة
28 hp
قطر عجلة التجليخ
8 "
ماكس RPM
8,000 RPM
الوزن
20000
CNC تحكم
CNC (GE FANUC 160 iMA)

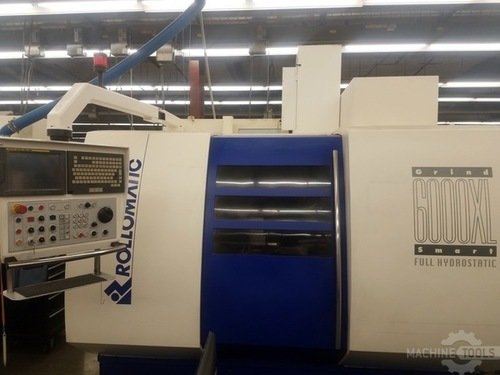

(1) Pre-owned: Rollomatic CNC Tool Grinder
Model: Grindsmart 6000XL Fully Hydrostatic (9-axis, 6 machine & 3 loader)
Year of Manufacture: 2005
Location: Western USA
Condition: Excellent

SPECIFICATIONS
440/3/60
GE Fanuc 160i-MB Interface Fanuc/Windows 7 Pro, VG Pro
Max grinding length: 7.874”
OD grinding diameter: 0.118” to 1.260”
Travels: X-11”, Y-9.5”, Z-14”
A-axis (grinding head rotation) 240°
B-axis (workhead rotation) 180°
C-axis (tool rotation) 0.0001° 550 RPM
Grinding Head: 28 HP, 8000 RPM
Double ended spindle
Max wheel diameter: 8”
Max number of wheels: 8
Includes: Spindle Chiller
Automatic Loader: Shank diameters .04” - .750”. Includes Auto pallet changer with up to 4 cassettes.
Note: This machine has six axis with hydrostatic ways on all axis both linear and rotary. Resolution on linear axis are at .000004 and on rotary 0.0001°. Machine also features a Schunk collet system for work holding and a FANUC 160iMB 9-axis interface. Rollomatic software includes the following software packages: End mills, ball nose, radius end mills, drill/step drills, step tools, burrs, “teach” in wheel shapes and machine calibrations, graphic wheel display with zero offsets and various control diagnostics. Other options include a flow meter to monitor the coolant flow, pressure meter to monitor the coolant pressure, hydrostatic oil chiller to regulate and control the temperature of the hydrostatic oil. One ELBARON oil mist exhaust system with duplex electro-static air filtration, capacity 700cfm. The machine is under power and ready to run tools.
This offer includes a large amount of new and almost new tooling with a new value of $94,000.00.
We also have several cassettes for an additional cost.

Weight: 20,000 Lbs.
Price: POR

To the best of our knowledge, the specifications contained herein are accurate but should be verified at time of inspection. If you have any further questions please call me at (207) 784-1999.
