DMG MORI DECKEL MAHO DMC125U LS5 HI-DYNمراكز التجهيز العمودي (5 محور أو أكثر)

بطاقة الهوية
426160
علامة تجارية
موديل
DECKEL MAHO DMC125U LS5 HI-DYN
حالة
تستخدم - ممتاز
السنة
2002
الموقع
Wisconsin
الولايات المتحدة الامريكية
عودة السياسة
كما هو
رقم المخزن
064147
064147 1
صور ( 10 )
بطاقة الهوية
426160
علامة تجارية
موديل
DECKEL MAHO DMC125U LS5 HI-DYN
حالة
تستخدم - ممتاز
السنة
2002
الموقع
Wisconsin
الولايات المتحدة الامريكية
عودة السياسة
كما هو
رقم المخزن
064147

المواصفات

تحويل المواصفات للمتري
X
49.2 "
Y
34.6 "
Z
31.5 "
أكسات
5
القدرة
37.5 hp
RPM
18000 rpm
# ATC
180
انحناء
HSK-A63
CNC تحكم
CNC (HEIDENHAIN MillPlus iT)

SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:

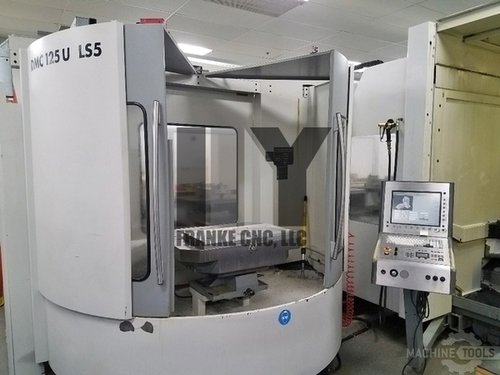

Used 2002 DECKEL MAHO DMC125U LS5 hi-dyn 5-AXIS UNIVERSAL MACHINING CENTER:

Machine made in Pfronten, Germany

This machine is capable of simultaneous 5-axis and 5-sided machining because of the universal swivel head which moves continuously between
vertical and horizontal spindle positions

HEIDENHAIN MillPlus iT CNC Control with electronic handwheel

-WORKING RANGE-
X axis (longitudinal)................................. 49.2" (1,250 mm)
Y axis (transverse)..................................... 34.6" (880 mm)
Z axis (vertical)....................................... 31.5" (800 mm)

-MAXIMUM WORKPIECE CONTOUR AND HEIGHT FROM TABLE SURFACE-
Maximum diameter...................................... 49.2" (1,250 mm)
Maximum height....................................... 48.42" (1,230 mm)
Maximum weight.................................... 3,307 lbs (1,500 kg)

-WORKING TABLE (7 PALLETS) NC ROTARY TABLE-
NC rotary table clamping surface..... 39.4" x 31.5" (1,000 mm x 800 mm)
NC rotary table maximum load...................... 3,307 lbs (1,500 kg)
Rotation range of table............ 360 x 0.001 degrees (full 4th axis)
**Has clamping hydraulics for working table**

-5TH AXIS MILLING SPINDLE-
NC Controlled B axis milling head. 4 seconds swivel time Horiz.-Vertical
Head swivels from horizontal to vertical & vertical to horizontal position
In addition head has a NC Controlled swivel range from vertical position
0 degrees to the left -7 degrees (in direction of tool magazine) and to
the right to horizontal position +180 degrees=3D187 degrees total swivel
range

-MAIN SPINDLE DRIVE-
Type............................................. AC controlled/digital
Power 40% duty cycle (S3).............................. 37.5 HP (28 kW)
Power 100% duty cycle (S1)............................. 25.5 HP (19 kW)
Speed range (spindle).................................... 20-18,000 rpm
Acceleration/Deceleration time............................... 2 seconds
Maximum spindle torque............................... 89 lb ft (121 Nm)
Spindle bearing diameter front/rear............. 3.15"/2.16" (80/55 mm)
Spindle taper.................................................. HSK-A63
Clamping power.................................................... 8 kN

-FEED DRIVES-
Type.............................................. Brushless AC/Digital
Feed rate............................... 0.04-590 IPM (1-15,000 mm/min)
Rapid feed (x-y-z)................................ 1,574 IPM (40 m/min)
Acceleration (x-y-z)................................. 4.5/3.5/6.0 m/s-2
Feed power (x-y-z)............................................... 10 kN
Ballscrews x/y/z.................................. 50x20/40x20/40x20 mm

-180 POSITION TOOL CHANGER-
Number of pockets.................................................. 180
Maximum tool weight...................................... 22 lb (10 kg)
Maximum tool diameter without free pockets.............. 3.94" (100 mm)
Maximum tool diameter with free pockets.................. 6.3" (160 mm)
Maximum tool length.................................... 17.72" (450 mm)

-COOLANT PUMP-
Pump output external jets......... 10.6 gallon/minute (40 liter/minute)
Pump pressure external jets........................ 21.76 PSI (1.5 bar)
Pump output chip rinsing........ 47.55 gallon/minute (180 liter/minute)
Tank volume..................................... 238 gallon (900 liter)

-COOLANT THRU THE SPINDLE; WITH COOLANT TEMPERING-
Pressure........................................... 1,450 PSI (100 bar)
Form............................................. Centre of the spindle

-WEIGHT-
Machine weight with table and pallet changer.... 32,187 lbs (14,600 kg)
Load on machine base including 2 x workpiece weight 35,494 lbs (16,100 kg)

-EQUIPPED WITH-
Automatic pallet changer with 7 pallets total (5 in linear storage unit)

BLUM Laser tool length measuring and broken tool detection

RENISHAW infrared parts measuring probe

Clamping hydraulics for working table

Coolant tempering(Coolant is chilled & temp controlled for high accuracy)

SMOG HOG Oil and Emulsion mist separator

Optional high output chillers

Spray pistol with pump
