JONSEN SBG1300ماكينات تنظيف

بطاقة الهوية
426512
علامة تجارية
موديل
حالة
الجديد في المخزن
الموقع
Wisconsin
الولايات المتحدة الامريكية
رقم المخزن
JR
الثمن

الوصف

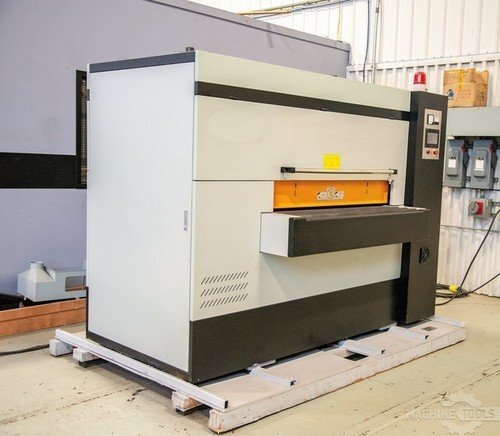

The SBG1300 is an Automatic, two-sided Deburring, Edge-Rounding and Surface Finishing machine. Designed to machine "burr free" edges on flat sheet metal components produced by thermal cutting or mechanical punching. This machine will provide excellent performance with a markedly reduced consumption of abrasive media when compared to wide belt sanders. Using Steel Brush Abrasive media blocks allows for the machine to remove oxidation layer on part edges.

المواصفات

الأبعاد
72” x 103” x 82” Tall
الوزن
Approx. 8,800 lbs.

Max. working width: 1300mm (51.2”)
Min. working length: 250mm (9.8”)
Machine opening: 180mm (7”)
Min. working thickness: 1mm (20 Gauge)
Conveyor speed: 1-5m/min (3.3 – 16.4 ft/min) Variable speed
Deburring belt compensation height: 40mm (1.5”)
Dust extraction capacity: 4000m3/h (2,350 ft3/min)
Total power consumption: 31 kW, Voltage 460V, 3 Ph / 60Hz
Feeding table height: 800mm (31.5”)
PLC control: Mitsubishi PLC
Deburring block unit types: DuPont abrasive filament , Abrasive flap (VSM)+ 3M Scotch Brite, Steel wire Dimensions: 72” x 103” x 82” Tall
Weight: Approx. 8,800 lbs.
