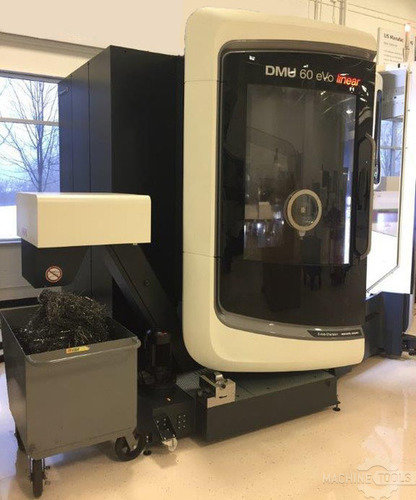

DMG MORI DMU 60 EVOمراكز تصنيع عالمية

بطاقة الهوية
426536
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2014
الموقع
الولايات المتحدة الامريكية
نطاق السعر
أكثر من $100,001 USD

الوصف

2014 DMG Mori DMU 60 EVO 5 Axis Vertical Machining Center. Machine is in great shape and can be viewed under power as needed. Options include: Celos Siemen 840D CNC control, NC rotary table with swivel axis, 60 station automatic toolchanger, 18000 RPM HSK A63 spindle, infrared measuring probe PP60 optical, laser tool measuring (swiveling), MPC machine protection, spray gun for swarf removal, programmable coolant nozzle, air blast through spindle coolant, high speed settings, CSA specifications, sSwarf chip conveyor, internal coolant supply, 3D quick set, and 4 color signal lamp. Please contact: Bob Nelson at 847-921-3845, Brian Foerster at 84-800-4494, or Cris Mulvihill at 602-501-8995 with any and all questions.

المواصفات

تحويل المواصفات للمتري
X
23.6 "
Y
19.7 "
Z
19.7 "
الأكسات#
5
القدرة
50 hp
RPM
18000 rpm
# ATC
60
الجدول-W
19.7 "
الجدول-L
23.6 "
انحناء
HSK-A63
الأبعاد
112"L X 84"W X 110"H
الوزن
21,715 Lbs
CNC تحكم
CNC (CELOS SIEMENS 840D)

2014 DMG Mori DMU 60 EVO
5 Axis Vertical Machining Center

Specifications:
Table Size ....................................................................................... 23.6" x 19.7"
Max Table Load ..................................................................................... 880 Lbs
X Axis Travel ............................................................................................. 23.6"
Y Axis Travel ............................................................................................. 19.7"
Z Axis Travel ............................................................................................. 19.7"
B Axis Swivel Range .................................................................. -5+110 Degree
C Axis Rotation ............................................................................... 360 Degrees
Spinlde Speed .................................................................................. 18,000 RPM
Spindle Motor ............................................................................................ 50 HP
Spindle Taper ...................................................................................... HSK-A63
Tool Stations ................................................................................................... 60
Machine Dimensions ..................................................... 112"L x 84"W x 110"H
Equipped With:
Celos Siemens 840D CNC Control
NC Rotary Table w/Swivel Axis
60 Tool Magazine ATC
18,000 RPM HSK-A63 Spindle
Infrared Measuring Probe PP60 Optical
Laser Tool Measuring, Swiveling
MPC Machine Protection
Spray gun for Swarf Removal
Programmable Coolant Nozzle
Air Blast Through Spindle Center
High Speed Settings
CSA Specification
Swarf Chip Conveyor
Internal Coolant Supply
3D Quick Set
Signal Lamp 4 Color
