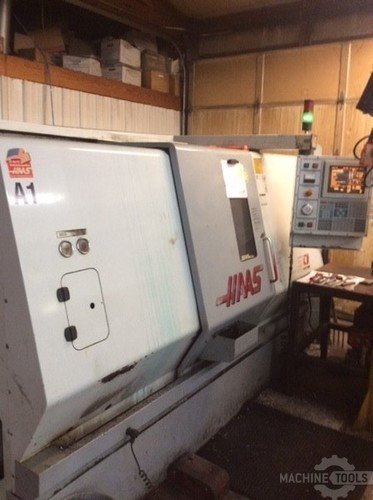

HAAS SL-30Tمخارط CNC

بطاقة الهوية
426538
علامة تجارية
موديل
النوع
السنة
1999
الموقع
Illinois
الولايات المتحدة الامريكية

الوصف

1999 Haas SL30T CNC Turning Center With Tailstock. Machine is in good condition and can be viewed under power as needed. Options include: programmable tailstock, tool presetter, 1 MB expanded memory, 3.5" floppy drive, chip auger, Haas Quickcode programming, 10" chuck, and miscl ID and OD toolholders. Please contact: Bob Nelson at 847-921-3845, Brian Foerster at 847-800-4494, or Cris Mulvihill at 602-501-8995 with any and all questions.

المواصفات

تحويل المواصفات للمتري
حجم الظرف
10 "
سعة العامود
2.5 "
أكسات
2
القدرة
30 hp
ماكس RPM
3400 rpm
قطر الخراطة
17 "
الأرجحة
30 "
بالقطع طول
34 "
غراب
Yes
الأدوات الحية
No
الفرعية المغزل
No
الأبعاد
161"L X 77"W X 74"H
الوزن
16000 (LBS)
CNC تحكم
CNC (HAAS)

1999 Haas SL-30T CNC
Turning Center

Specifications:
Chuck Size ..................................................................................................... 10"
Swing Over Apron ........................................................................................ 30"
Swing Over Cross Slide ............................................................................. 14.5"
Max Turn Diameter ....................................................................................... 17"
Max Turn Length .......................................................................................... 34"
Distance Between Centers ............................................................................. 39"
X Axis Travel ............................................................................................. 11.3"
Z Axis Travel ................................................................................................ 34"
Spindle Nose ............................................................................................... A2-6
Spindle Bore ................................................................................................. 3.5"
Bar Capacity .................................................................................................... 3"
Spindle Speed .................................................................................... 3,400 RPM
Spindle Motor ............................................................................................ 30 HP
Turret Stations ................................................................................................. 12
Rapid Traverse Rates ............................................................................ 710 IPM
Machine Weight ................................................................................ 16,000 Lbs
Machine Dimensions ....................................................... 161"L x 77"W x 74"H
Equipped With:
Haas CNC Control
Programmable Tailstock
Tool Presetter
1 MB Expanded Memory
3.5" Floppy Drive
Chip Auger
Quick Code Programming
10" 3-Jaw Chuck
Misc. ID & OD Tool Holders
