AMADA ARCADE 210برج اللكمات

بطاقة الهوية
426620
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1994
الموقع
بولندا
رقم المخزن
PL-PUN-AMA-1994-00001

الوصف

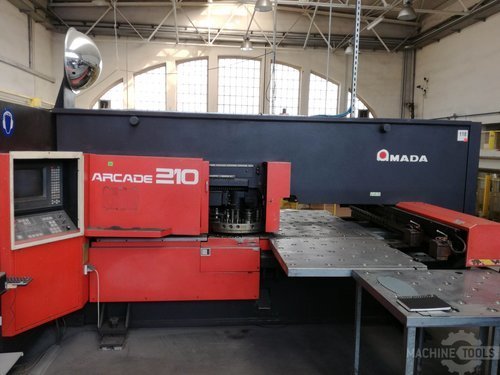

This AMADA ARCADE 210 Turret Punching Machine was built 1994 in France. With a FANUC Series 16-P Control unit, this model has mainly worked with metal sheets with around 0.6 mm of thickness during the past and was always inspected on time. Additional tools are available for this machine upon request.

المواصفات

تحويل المواصفات للمتري
حمولة
20 T
محطة تارت#
19

AMADA ARCADE 210 Turret Punching Machine

General Data:
Measurements width: 2750 mm
Measurements depth: 4460 mm
Measurements height: 2130 mm
Machine weight: 10000 kg

Control Unit:
Brand: Fanuc
Model: Series 16-P

Main Drive:
Punching force: 200 kN

Movement:
X-Axis Movement: 1270 mm
Y-Axis Movement: 1000 mm

Workpiece:
Workpiece X: 2540 mm
Workpiece Y: 1000 mm

Tools:
Number of index: 3
Number of station: 19

Media:
Main electronic connection: 400V / 50 Hz
Power consumption: 23 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment:
* Tools (upon request)
