مكابس C-الإطارGREENERD HC-12
Illinois, الولايات المتحدة الامريكيةنظرة عامة
علامة تجارية
موديل
بطاقة الهوية
426745
النوع
حالة
مستعملة - جيد
الموقع
Illinois
الولايات المتحدة الامريكية
الولايات المتحدة الامريكية
رقم المخزن
27702
12 Ton, Greenerd, Hydraulic, 12" str., 24" DL 24" x 15" bed, 2-post guided slide, #27702.
تحويل المواصفات للمتري
حمولة | 12 T |
ورقة المواصفات

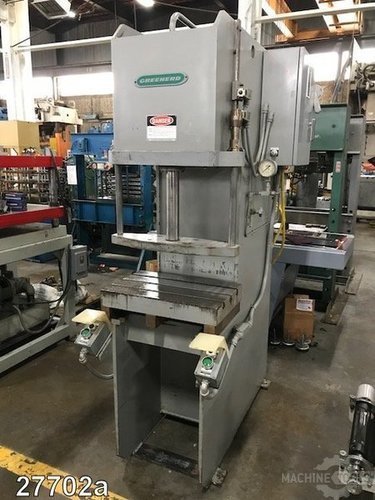

12 TON GREENERD HYDRAULIC C FRAME PRESS
With 2 post guided slide
Model HC-12-11L2
Floor standing
Bed area: 24" L-R x 15" F-B (T-slotted)
Stroke: 0 - 12" maximum
Daylight opening (total): 24" maximum
Throat depth: 11"
Ram diameter: 4"/2.5" @ 1910 PSI - 12 tons
Floor to top of bed: 37"
Power unit: Hydraulic pump, driven by
5 HP 1140 RPM 230/460/3/60 motor
Speeds approx.: 247"/minute closing
31"/minute pressing to 12 tons
404"/minute return
Controls: Pushbutton operation with stroke &
pressure control
Dual palm buttons
Pressure gauge
Weight approx. 4,400 lbs.
Overall dimensions approx. 44" L-R x 70" F-B x 92" H
Serial no. 84T4043
Stock no. 27702
FOB ELK GROVE VILLAGE, IL
