WABASH MIL100-2424-4CTMمكابس صب

بطاقة الهوية
427174
علامة تجارية
النوع
حالة
مستعملة - جيد
الموقع
Illinois
الولايات المتحدة الامريكية
رقم المخزن
27797
نطاق السعر
$10,001 - $50,000 USD

الوصف

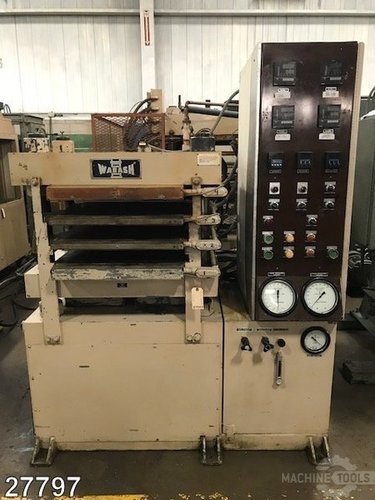

100 Ton, Wabash, 3-opening, 9" str., (4) 24" x 24" electric hot plates, inline cold press, #27797.

المواصفات

تحويل المواصفات للمتري
حمولة
100 T
المشوار
9 "

100 TON WABASH MOLDING & LAMINATING INLINE PRESS
Hydraulic
Model no. MIL100-2424-4CTM
4 post upstroke type
3 opening
Floor standing
Distance between 3" dia. posts: 28" L-R x 13" F-B
Platen area (nominal): 24" L-R x 24" F-B
Stroke of fully guided platen: 0-9" maximum
Daylight opening (total): 17" maximum
Daylight opening between
hot plates(3): 3" maximum each
Hot plates(4): 24" L-R x 24" F-B x 1.5" thick
(electrically heated to 600°F)
Insulation(2): 24" L-R x 24" F-B x 1" thick
Main ram diameter(1): 7"/3" @ 5200 PSI - 100 tons
Floor to top of moving platen: 41"

COLD PRESS:
3 opening
Cold plates: 24" L-R x 24" F-B

Power unit (base of press): Hydraulic pump, driven by
5 HP 1740 RPM 230/460/3/60 motor
Hydraulic pump, driven by
1.5 HP 1740 RPM 230/460/3/60 motor
Controls: Pushbutton operation with stroke & pressure control
Dual palm buttons
Selector switch for manual or semi-automatic operation
Cycle timers: low pressure, high pressure,
cool press timer
(4) digital temperature indicating controllers
Low & high pressure gauge
Weight approx. 10,000 lbs.
Overall dimensions approx. 65" L-R x 60" F-B x 80" H
Serial no. 7874
Stock no. 27797
FOB ELK GROVE VILLAGE, IL
