BLOCK PRO 4222مراكز التجهيز العمودي

بطاقة الهوية
427922
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2007
الموقع
South Carolina
الولايات المتحدة الامريكية
عودة السياسة
كما هو
نطاق السعر
$10,001 - $50,000 USD

الوصف

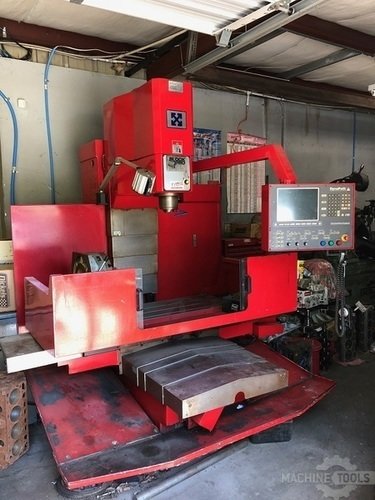

CNC Vertical Machining Center specifically designed to machine engine blocks, includes large manual vertical/horizontal indexer to reach multiple sides of a block for porting and other types of machining. Lightly used, sat idle in a warehouse for 4 years until being purchased by a race shop to machine engine blocks.

المواصفات

تحويل المواصفات للمتري
X
41.7 "
Y
22 "
Z
24 "
RPM
6000 rpm
# ATC
20
الجدول-W
18 "
الجدول-L
48 "
انحناء
Cat 40
أكسات
4
CNC تحكم
CNC (Dynapath Delta 2000)

X-Axis 41.7"
Y-Axis 22.0"
Z-Axis 24.02"
Table Size 48" x 18"
Spindle Speed 60 - 6000 RPM
Spindle Taper CAT 40
Tools 20
Table Load Capacity 2000 lbs.
Rapid Traverse Rate 320 IPM
Max Tool Diameter 3.54"
Max Tool Length 11"
Max Tool Weight 13.78 lbs.
Spindle Center to Column 23.62"
Spindle Nose to Table Top 4.8" - 28.9"
Spindle Torque 39 ft. lbs

Features:
• Dynapath Delta 2000 CNC Control
• 12" Color LCD
• 3-Axis Simultaneous Contouring Capability
• Conversational Programming
• PC Based Pentium
• 3.5" Floppy Disc Drive
• Rs-232 Interface
• High Speed Contouring
• 40 Block Look Ahead
• Hardened and Ground Slideways on All Axes
• (4) Box Ways on Y-Axis
• Variable Speed AC Spindle Motor
• AC Servo Drives
• Tool Path Graphic Display
• Canned Drill Cycles
• Canned Cycles for Facing, Rectangular & Circular Pocket
• Cutter Radius Compensation
• Math Help
• Chip Tray
• Auto Lube System
• Manual Rotary Indexer (Horizontal & Vertical)
