TRAUB TNS 60مخارط CNC

بطاقة الهوية
427993
علامة تجارية
موديل
النوع
حالة
مستعملة - جيد
السنة
1984
الموقع
اسبانيا
رقم المخزن
ES-TUR-TRA-1984-00001

الوصف

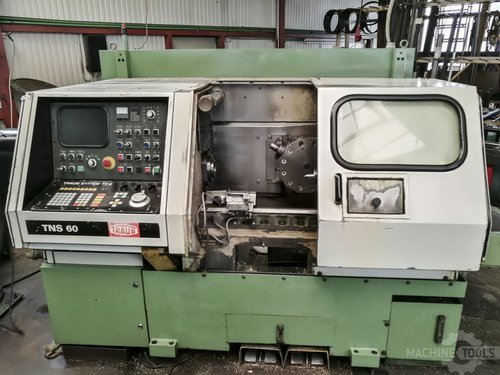

This TRAUB TNS 60 Lathe was manufactured in 1984 in Germany and has a working record of 10608 production hours. This model is equipped with a TRAUB System TX-8 Control unit and has mainly worked with 60 mm steel bars during the past. An automatic bar feeder is included in the delivery.

المواصفات

تحويل المواصفات للمتري
القدرة
41 hp
ماكس RPM
20
قطر الخراطة
13.7 "
غراب
Yes

TRAUB TNS 60 Lathe

Production Hours: 10608

General Data:
Measurements width: 3100 mm
Measurements depth: 1220 mm
Measurements height: 1584 mm
Machine weight: 4000 kg

Control Unit:
Brand: TRAUB
Model: System TX-8

Main Drive:
Number of spindles: 1
Spindle speed range: 4000 1/min

Workpiece:
Workpiece drm: 180 mm
Workpiece X: 450 mm

Turret:
Number of turrets: 12
Max tool length: 60 mm

Media:
Main electronic connection: 380 V
Power consumption: 41 kVA

Additional Equipment:
* Bar loader
