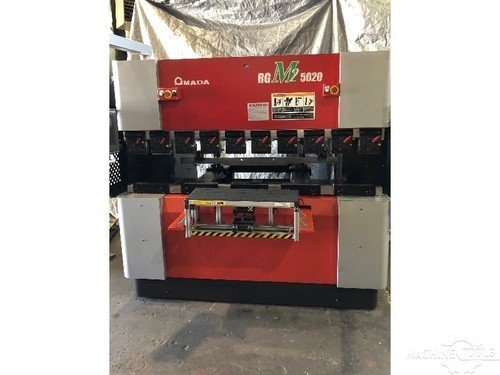

AMADA RG-M2-5020الصحافة الفرامل
Designed specifically to enhance computer control.
Centralized controls provide quick, easy control of tonnage, bending depth and stroke length adjustment.
Fully adjustable two speed operation.
Strategic placement of the cylinders creates an ideal deflection curve, eliminating the need to shim precision tooling. Angular accuracy is constant over the full part length.
Roller guiding system eliminates all ram/guide freeplay and wear.
Tonnage limiter and gauge protect tooling and increase safety.
Exclusive handwheel depth control simplifies set-up and reduces scrap.
Sectionalized punch holders allow deep box forming and can create windows for long return flanges.
Flip Up Front Support Arms
Adjustable Work Support Table
Full Foot Pedal Operation
Exclusive tool holders simplify procedures and reduce tooling set-up time.
Model: RG-M2 5020
Maximum Tonnage: 55 Tons
Maximum Bending Length: 82.09"
Maximum Stroke Length: 3.937"
Open Height: 14.57"
Throat Depth: 15.75"
Distance Between Side Frames: 59.84"
Ram Speed: Approach: 2.36"/sec.
Return Speed: 1.38"/sec.
CNC Control: AMNC-IS Touchscreen
