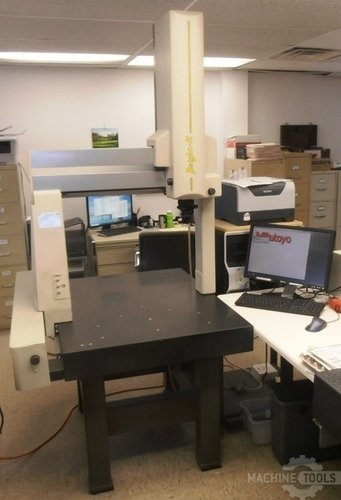

MITUTOYO BRTM507ماكينه قياس احداثيه

بطاقة الهوية
428330
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1999
الموقع
Massachusetts
الولايات المتحدة الامريكية
رقم المخزن
2209

الوصف

Mitutoyo BRTM507 Bright M Series Coordinate Measuring Machine, X-20", Y-28", Z-16", Dell T3500 Computer, MCOSMOS Manual Geomeasure V3.0 Software, 0.00005" Resolution, Air Bearings & Clamping, Granite Plate with M8 Tapped Inserts, Renishaw Head (no probes), New 1999, Computer and Software Updated in 2011. http://www.agreenco.com/MitutoyoBRTM507-2209.html

المواصفات

تحويل المواصفات للمتري
X
20 "
Y
28 "
Z
16 "
الأبعاد
43"W x 49"D x 89"H
الوزن
1195 lb.

1-(used) Mitutoyo BRTM507 Bright M Series Coordinate Measuring Machine, New 1999, Computer and Software Updated in 2011.

SPECIFICATIONS:
Measuring range;
X-axis.................................................... 20"
Y-axis.................................................... 28"
Z-axis.................................................... 16"
Resolution............................................. 0.00005"
Accuracy (ISO 10360-2; 1994)
Indication accuracy (E)....................... E=4.0+5L/1000µm
Probing error (R)................ R=5.0µm (As using with TP-2)
Z-axis balancing................................ counter balance
Fine feed................................ All range continuously
Max. workpiece weight................................... 352 lb.
Air pressure................................... 0.4MPa on 58 psi
Air consumption (normal conditions)....... 40 L/min. on 1.44 cfm
Temperature specification.......................... 68°F ± 1.8°F
Dimensions (approx.)......................... 43"W x 49"D x 89"H
Weight (incl. stand, approx.).......................... 1195 lb.

EQUIPPED WITH:
Dell T3500 with MCOSMOS Manual Geomeasure V3.0 software
Monitor & printer
Granite plate with tapped inserts (M8)
Air bearing on each axis
Air clamping with one-touch operation
Renishaw head (no probes)

http://www.agreenco.com/MitutoyoBRTM507-2209.html
