ROUNDO PS-420لوحة رولز الانحناء بما في ذلك قرصة

بطاقة الهوية
428418
علامة تجارية
موديل
حالة
مستعملة - جيد
الموقع
Pennsylvania
الولايات المتحدة الامريكية
رقم المخزن
18088

المواصفات

تحويل المواصفات للمتري
طول البكر
8 '
أقصى سمك
1.25 "
بكرة#
3
تدفق قدرة خلفى (نعم/لا
yes

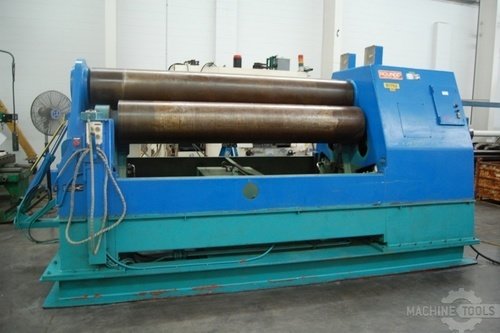

ROUNDO PLATE BENDING ROLLS 8' X 1-1/4"
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $59,000.00

HMC Stock No. 18088
Machine Serial No. 833017
Machine Model No. PS-420
New Date: 1983

Rated Capacity: 8' x 1-1/4" Mild Steel
Roll Diameter: 16-3/8" All Rolls
Lower Roll Length: 100-1/2"
Variable Rolling Speeds: (rate unknown
Pyramid Design
All Rolls are Hydraulically Driven with Mechanical Gear Linkage
Independent Hydraulic Power Lower Roll Adjustment
Lower Rolls Adjust Independently for Parallelism
Pendant Control for Lower Roll Adjustments
Hydraulic Drop End Support of Upper Roll
Can Do Cone Bending with Special Attachment (NOT Supplied)
Upper Roll Has Keyed Unit to Accept Cone Attachment (Supplied)
Each Lower Roll Has a Position Display Indicator Dial
Machine is Self-Contained on Flush Floor Steel Frame
All Rolls are in Good Condition
Hydraulic System is Self-Contained in Machine Frame Work
Factor Manual for Operation, Parts and Schematics
Made in Sweden
40 HP Motor for Hydraulic System
1 HP Lube Motor
Wired for 3 Phase, 60 Hz, 220/380/440 Volt Operation
Presently Wired For 440 Volt Operation

Overall Size: 190" Long x 86" Wide x 93" High x 43,500 Lbs.
