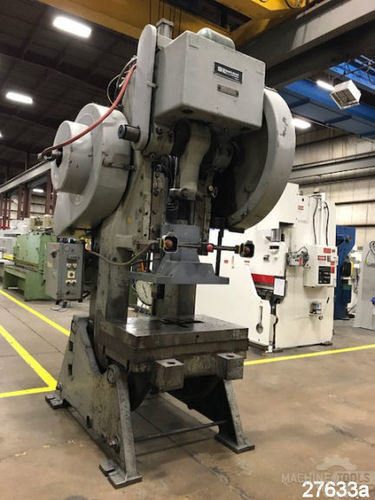

125 TON JOHNSON O.B.I. PUNCH PRESS
Model no. 125BG-AC
Air clutch & brake
Air counterbalances
Back geared type
Stroke: 6"
Slide adjustment: 4"
Shut height S.D.A.U.: 21-1/2" to top of bed
Area of bed: 42" L-R x 27" F-B
Bolster thickness: 7-1/2" (two bolsters)
Area of slide: 28" L-R x 21" F-B
Shank hole diameter: 3"
Throat depth: 15"
Opening through back: 21"
Floor to top of bed: 33"
S.P.M. approx.: 40
EQUIPPED WITH: Dual palm buttons for run with
emergency stop button
Pushbuttons for start - stop
Key selector switch for inch - off -
single - continuous
Rotary cam limit switches
Bijur automatic oil lubrication
Knockout slot in slide
Air surge tank
15 HP 1175 RPM 230/460/3/60 motor
Weight approx. 21,000 lbs.
Overall dimensions approx. 62" L-R x 89" F-B x 142" H
Serial no. 73008
Stock no. 27633
FOB ELK GROVE VILLAGE, IL
