FPT AREA Mأفقي نوع الدور مطاحن مملة

بطاقة الهوية
429393
علامة تجارية
موديل
AREA M
حالة
مستعملة - جيد
السنة
2008
الموقع
جمهورية التشيك
رقم المخزن
CZ-MIL-FPT-2008-00001

الوصف

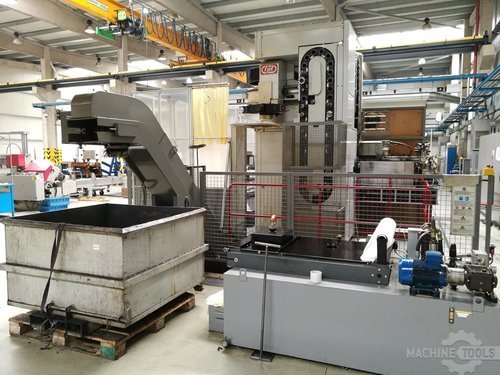

This FPT AREA M Machining Center was made 2008 in Italy and has a working record of approximately 10000 production hours. This model is equipped with a SIEMENS SINUMERIK Control unit and stands out due to its hydrostatic guideways on the X, Y and Z axis, its pallet changing system and automatic milling head exchange. During the past, this machine has worked mainly with steel.

المواصفات

RPM
3000 rpm

FPT AREA M Machining Center

Production Hours: 10000

Control Unit:
Brand: SIEMENS
Model: SINUMERIK 840D

Main Drive:
Number of spindles: 1
Spindle speed range: 3000 1/min

Movement:
X-Axis Movement: 6000 mm
Y-Axis Movement: 1250 mm
Z-Axis Movement: 2000 mm

Workpiece:
Workpiece weight: 7000 kg

Table:
Outer length: 1000 mm
Outer width: 1000 mm

Tools:
Max weight: 20 kg
Max tool diameter: 230 / 125 mm
Max tool length: 400 mm

Media:
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment:
* Straight milling head, D'Andrea head
