TRAUB TNK-36مخارط CNC

بطاقة الهوية
429397
علامة تجارية
موديل
النوع
حالة
مستعملة - جيد
السنة
2003
الموقع
المانيا
رقم المخزن
NL-TUR-TRA-2003-00001

الوصف

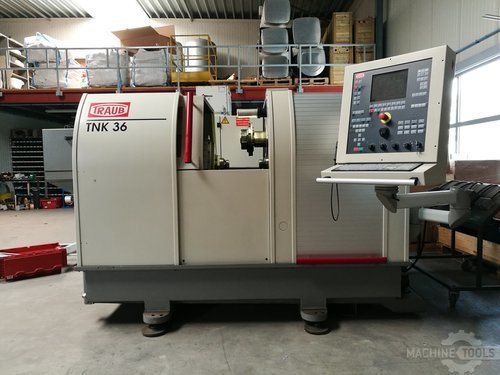

This TRAUB TNK 36 Lathe from 2003 was manufactured in Germany and has been operative for 16817 production hours since then. Equipped with a TRAUB TX 8I Control unit, this turning machine has mainly worked with 33 mm steel pipes during the past. This well maintained machine with powerful tool drives comes together with several additional equipment items such as a chip conveyer or a coolant tank.

المواصفات

تحويل المواصفات للمتري
سعة العامود
1.417 "

TRAUB TNK 36 Lathe

Production Hours: 16817

General Data:
Measurements width: 3400 mm
Measurements depth: 1250 mm
Measurements height: 1700 mm
Machine weight: 4000 kg

Control Unit:
Brand: TRAUB
Model: TX 8I

Main Drive:
Number of spindles: 2
Spindle speed range: 6300 1/min

Movement:
X-Axis Movement: 370 mm
Z-Axis Movement: 225 mm

Workpiece:
Workpiece drm: 36 mm
Workpiece X: 50 mm
Workpiece Z: 100 mm
Workpiece weight: 20 kg

Turret:
Number of turrets: 1
Max tool length: 42 mm

Tools:
Max weight: 25 kg
Max tool diameter: 6 mm
Max tool length: 250 mm

Media:
Main electronic connection: 400 V / 50 Hz
Power consumption: 24 kVA
Chip conveyor: Yes

Additional Equipment:
* Coolant tank 300L
* Alarm lamp
* Chip conveyer
* Electric Housing
