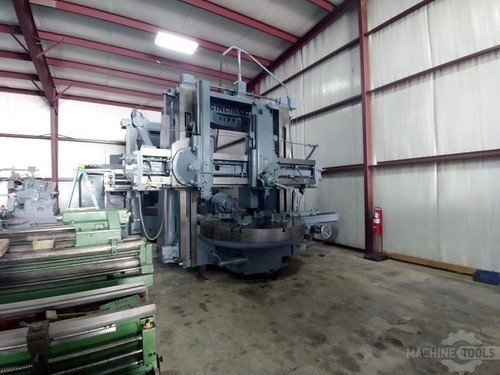

CINCINNATI HYPRO 84عمودي مملة ميلز (incld VTL)

بطاقة الهوية
429585
علامة تجارية
موديل
حالة
مستعملة - جيد
رقم المسلسل
6933
الموقع
Texas
الولايات المتحدة الامريكية
رقم المخزن
Ref.#B6006104

الوصف

84" Used Cincinnati Hy-Pro Vertical Turret Lathe Ref.#B6006104 Model: Hy-Pro 84 Serial No. 6933 New: Table Size.....82" Boring Mill Jaws.....(4) Swing.....86" Height Under Rail......72" Table Speed.....4 To 54 Rpm's Feeds......010 To .500 I.P.R Main Motor.....50 Hp. Right Hand Turret Travel Left To Right.....48" Right Hand Turret Travel Up & Down.....42" Left Hand Ram Travel Left To Right.....40" Left Hand Ram Travel Up & Down.....42" Ram Diameters.....8-1/2" Rams Swivel.....55 Degrees Floor Space Right To Left.....16' Floor Space Front To Back .....13' Height.....144" Weight.....84,000 Lbs. Floor Mount......Yes Note: Machine Has Just Been Removed From Service Condition:.....Very Good Price:.....Please Call

المواصفات

تحويل المواصفات للمتري
قطر المنضدة
84 "
الأرجحة
86 "
ارتفاع الشغل U/R
72 "
القدرة
50 hp
RPM
54 rpm
الأبعاد
16’ RL x 13’ FB x 12’3”H
الوزن
84,000 Lbs.

84" Used Cincinnati Hy-Pro Vertical Turret Lathe
Ref.#B6006104
Model: Hy-Pro 84
Serial No. 6933 New:

Table Size.....82"
Boring Mill Jaws.....(4)
Swing.....86"
Height Under Rail......72"
Table Speed.....4 To 54 Rpm's
Feeds......010 To .500 I.P.R
Main Motor.....50 Hp.
Right Hand Turret Travel Left To Right.....48"
Right Hand Turret Travel Up & Down.....42"
Left Hand Ram Travel Left To Right.....40"
Left Hand Ram Travel Up & Down.....42"
Ram Diameters.....8-1/2"
Rams Swivel.....55 Degrees
Floor Space Right To Left.....16'
Floor Space Front To Back.....13'
Height.....144"
Weight.....84,000 Lbs.
Floor Mount......Yes

Note: Machine Has Just Been Removed From
Service
Condition:.....Very Good

Price:.....Please Call
