COVEL 17-Hالمطاحن سطح الترددية

بطاقة الهوية
429918
علامة تجارية
موديل
السنة
1969
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
157142

الوصف

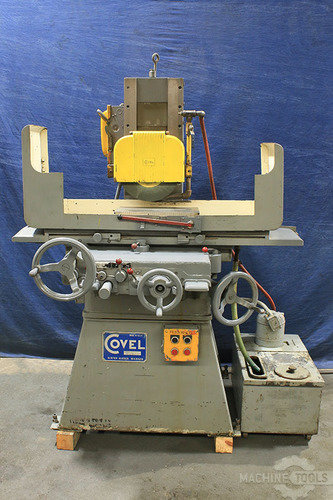

10" Width 16" Length Covel 17H SURFACE GRINDER, HYD. X-Y FEEDS, PMC, COOLANT, RUNS GREAT

المواصفات

تحويل المواصفات للمتري
الجدول-W
10 "
الجدول-L
16 "
عامود الدوران (أفقى/رأسى
Horz
القدرة
2 hp
عرض عجلة التجليخ
0.75 "
قطر عجلة التجليخ
12 "

10" X 16" COVEL HYDRAULIC SURFACE GRINDER         MODEL:  #17H   S/N: 17H-5593     NEW:  1969                                                               WIDTH AND LENGTH GROUND ........................... 10" X 16" LONGITUDINAL TRAVEL ............................... 17-1/2" CROSS FEED TRAVEL ................................. 10-3/4" VERTICAL WORKING HEIGHT UNDER 7" WHEEL ............ 14" HYDRAULIC LONGITUDINAL TABLE TRAVERSE RATE ........ 5' TO 60' AUTO CROSSFEED INCREMENT PER TABLE PASS ........... 0.005" - .250"STD. GRINDING WHEEL ........ ...................... 12" X 3/4" X 3"CROSS FEED HANDWHEEL GRAD. ........................ 0.001" SPINDLE SPEED ..................................... 1,750 RPM APPROXIMATE MACHINE WEIGHT ........................ 3,000 LBS                                                         EQUIPPED WITH:                                          SELF-CONTAINED HYDRAULIC SYSTEM PROVIDING POWER          LONGITUDINAL & CROSS FEEDS                             HARDENED & GROUND PRECISION LEADSCREWS                  ELEVATING HANDWHEEL @ OPERATOR'S HIP LEVEL              ELEVATING HANDWHEEL @ OPERATOR'S HIP LEVEL               8" X 15" "SUBURBAN" "MCB 815" FINE-DIVISION PERMANENT MAGNETIC CHUCK              EXTERNAL COOLANT SYSTEM W/GUARDS, PIPING & TANK/PUMP 2 HP 3/60/220-440 VOLT DIRECT DRIVE SPINDLE MACHINE IS PRESENTLY WIRED FOR 440 VOLTS                                          ** MACHINE RUNS VERY WELL, QUIET SPINDLE & HYDRAULICS **               *** EXCELLENT CONDITION & APPEARANCE ***              ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
