ARONSON GE-180Aضبط موقع اللحام

بطاقة الهوية
429978
علامة تجارية
موديل
السنة
1975
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
157375
الثمن

الوصف

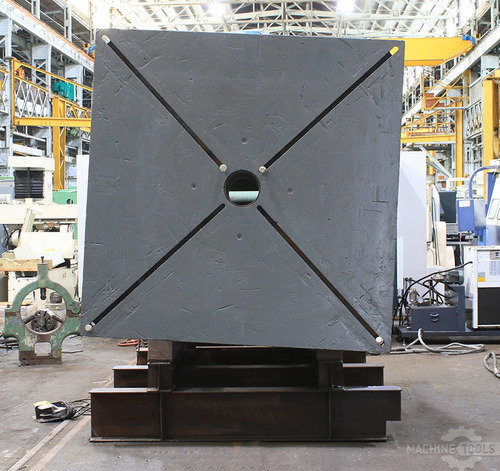

18000Lb Cap. Aronson GE180A WELDING POSITIONER, Geared Elevation

المواصفات

تحويل المواصفات للمتري
أقصى وزن من الشغل
18,000 lb

18,000 LB ARONSON WELDING POSITIONER w/GEARED ELEVATION

MODEL GE-180A           S/N 7584          NEW 1975



MAX. LOAD TORQUE, TILT ....................................... 369,000 LB. / IN.

MAX. ROTATION TORQUE ......................................... 216,000 LB. / IN.

INHERENT OVERHANG ............................................ 8-1/2"

WEIGHT CAPACITY AT 12" CG  ................................... 18,000 LBS.

                   18" CG  ................................... 13,900 LBS.

                   24" CG  ................................... 11,350 LBS.

                   30" CG  ................................... 9,600  LBS.

                   36" CG  ................................... 8,300  LBS.

                   42" CG  ................................... 7,300  LBS.

                   48" CG  ................................... 6,500  LBS.

                   54" CG  ................................... 5,900  LBS.

                   60" CG  ................................... 5,400  LBS.

                   66" CG  ................................... 4,950  LBS.

                   72" CG  ................................... 4,600  LBS.

MAX. TABLE TILT .............................................. 135 DEG.

INF. VARIABLE ROTATION SPEEDS ................................ .016 TO .5 RPM

HEIGHT TABLE FLAT IN LOWEST POSITION ......................... 56"

HEIGHT TABLE FLAT IN HIGHEST POSITION ........................ 89"

VERTICAL GEARED TRAVEL ON POSTS .............................. 33"

DIAMETER OF SPINDLE HOLE ..................................... 10"

SIZE OF TABLE ................................................ 84" x 84"

APPROX. WEIGHT ............................................... 9,500 LBS.



EQUIPPED WITH:

- 84" x 84" SQUARE TABLE

- HOLLOW SPINDLE

- GEARED ELEVATION

- HAND HELD PORTABLE PENDANT CONTROL

- DYNAMIC BRAKING

- DOUBLE GEARED DRIVE

- 3 HP ROTATION DRIVE

- 5 HP TILT DRIVE

- 3/60/440 VOLT ELECTRICS WITH SOLID STATE CONTROLS



New Price in Excess of $160,000

FOR MORE INFORMATION: Call Rick at 973-497-7560
