WARNER & SWASEY 5A-M3600برج مخارط (رام والسرج)

بطاقة الهوية
430262
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1982
رقم المسلسل
3046549
الموقع
Alberta
كندا
عودة السياسة
30 يوم

الوصف

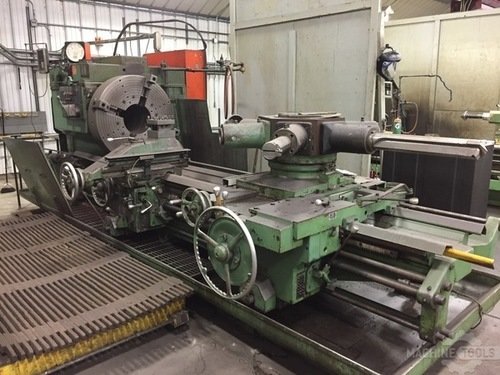

PRICE REDUCED Extra Heavy Duty Saddle Type Turret Lathe with 12-1/2" spindle bore, crossliding turret with taper attachment, front carriage with taper attachment, full-length leadscrew threading. 75 HP main motor. Excellent machine for deephole drilling and boring.

المواصفات

تحويل المواصفات للمتري
الأرجحة
36.5 "
نوع
Saddle
الأبعاد
240 X 90 X 90
الوزن
26,000

SWING OVER CARRIAGE ................. 36-1/2"
SWING OVER CROSS SLIDE ............. 32-3/4"
SPINDLE TO TURRET FACE .............. 96"
SPINDLE BORE……………………………… 12-1/2”
SPINDLE NOSE …………………………….. A-20
SPINDLE SPEEDS ..................... 10 TO 281 RPM
THRREADING (LEADSCREW) ………… ¾ - 36 TPI
CROSS SLIDE FEEDS ................. 0.002 TO .007 IPR
TURRET FEEDS ......................... 0.005 TO .167 IPR
CROSS SLIDING TURRET FEEDS ... 0.006 TO .090 IPR
MAIN MOTOR (2-Speed) ............... 37.5 / 75 HP
DIMENSIONS – L x W x H ……….240” x 90” x 90”
WEIGHT, APPROX …………………..26,000 LBS.

Equipped With:

Newall Digital Readout
36” Cushman Independent HD 4-Jaw Chuck with 12-1/2" Hole
Large 12-1/2” Spindle Bore
75 HP 2-speed motor with Headstock-mounted Load Meter
Hydraulic Preselect Headstock
Crossliding Turret with Taper Attachment
Front Saddle with 4-way Toolpost and Taper Attachment
Full length leadscrew and threading gearbox
Rapid traverse
Chip tray and coolant pump
Assorted boring bars and turret toolholders
