AMADA RG-125الصحافة الفرامل

بطاقة الهوية
431247
علامة تجارية
موديل
السنة
1997
الموقع
الولايات المتحدة الامريكية
رقم المخزن
6346

الوصف

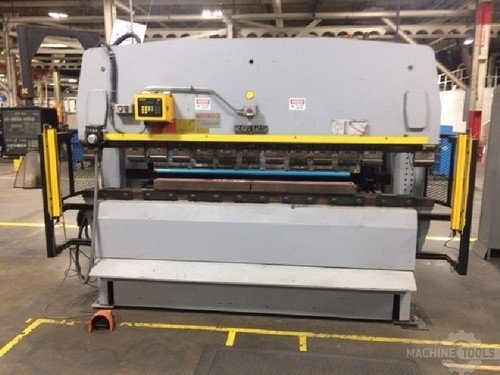

Amada Press Brake,Model RG 125 EX-II

المواصفات

تحويل المواصفات للمتري
حمولة
138 T
نوع
HYD
طول كلى
122 "
أكسات
3

EQUIPPED WITH

Designed specifically to enhance computer control.

Centralized controls provide quick, easy control of tonnage, bending depth and stroke length adjustment.

Fully adjustable two speed operation.

Strategic placement of the cylinders creates an ideal deflection curve, eliminating the need to shim precision tooling. Angular accuracy is constant over the full part length.

Roller guiding system eliminates all ram/guide freeplay and wear.

Tonnage limiter and gauge protect tooling and increase safety.

Exclusive handwheel depth control simplifies set-up and reduces scrap.

Sectionalized punch holders allow deep box forming and can create windows for long return flanges.

Smooth throttle action pedal increases operator control and safety.

Treadle safety shield.

Exclusive tool holders simplify procedures and reduce tooling set-up time.

NC9EX-II Amada 3 Axis CNC Control

Pneumatic Foot Switch Option

Merlin Light Guards


SPECIFICATIONS
Model: RG 125 EXII
Maximum Tonnage: 138 USTons
Maximum Bending Length: 120.28"
Maximum Stroke Length: 3.937"
Open Height: 14.57"
Throat Depth: 15.75"
Distance Between Side Frames: 100.39"
Ram Speed: Approach: 1.8"/sec.
Bending: .33"/sec.
Return Speed: 1.38"/sec.
Electrical Requirements: 15hp, 230/460/3/60
CNC Control: NC9EX-II
Machine Weight: 15,650 lbs
