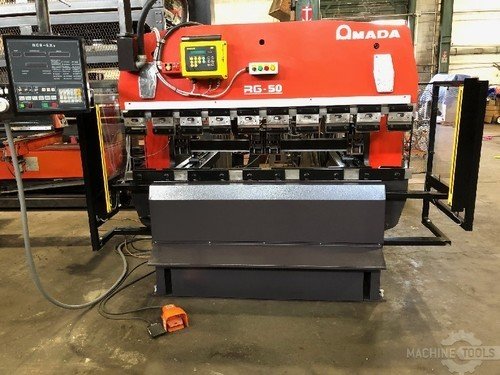

AMADA RG-50الصحافة الفرامل
Designed specifically to enhance computer control.
Centralized controls provide quick, easy control of tonnage, bending depth and stroke length adjustment.
Fully adjustable two speed operation.
Strategic placement of the cylinders creates an ideal deflection curve, eliminating the need to shim precision tooling. Angular accuracy is constant over the full part length.
Roller guiding system eliminates all ram/guide freeplay and wear.
Tonnage limiter and gauge protect tooling and increase safety.
Exclusive handwheel depth control simplifies set-up and reduces scrap.
Sectionalized punch holders allow deep box forming and can create windows for long return flanges.
Smooth throttle action pedal increases operator control and safety.
Treadle safety shield.
Exclusive tool holders simplify procedures and reduce tooling set-up time.
NC9EX-II Amada 3 Axis CNC Control
Pneumatic Footswitch Option
Merlin Light Guards
Model: RG 50 EX-II
Maximum Tonnage: 55 Tons
Maximum Bending Length: 82.1"
Maximum Stroke Length: 3.937"
Open Height: 14.57"
Throat Depth: 15.75"
Distance Between Side Frames: 59.84"
Ram Speed: Approach: 1.8"/sec.
Return Speed: 1.38"/sec.
Electrical Requirements: 230/460/3/60
CNC Control: NC9EX-II
