OKUMA IMPACT LU-25مخارط CNC

بطاقة الهوية
431263
علامة تجارية
موديل
النوع
حالة
تستخدم - ممتاز
السنة
2002
الموقع
Wisconsin
الولايات المتحدة الامريكية
عودة السياسة
كما هو

الوصف

2002 OKUMA LU-25 / 1000 4-AXIS CNC TURNING CENTER Loaded With All Options & Tooling as Installed Under Power! EQUIPPED WITH: Okuma U100L CNC Control w/Color CRT, High Low Chuck Pressure, 40 HP Spindle, 3.54" Spindle Bore, 12 Position Upper and 10 Position, Lower Simultaneous Tool Turrets (22) Total Tools), Side Discharge Chip Conveyor and Coolant System.

المواصفات

تحويل المواصفات للمتري
حجم الظرف
12 "
سعة العامود
3.15 "
أكسات
4
القدرة
40 hp
ماكس RPM
3400 rpm
الأرجحة
25.5 "
بالقطع طول
40 "
غراب
Yes
الأدوات الحية
No
الفرعية المغزل
No
الأبعاد
Lenght 189"x Width 100" x Machine Height 87"
الوزن
24,000 Lbs.
CNC تحكم
CNC (OSP U100L)

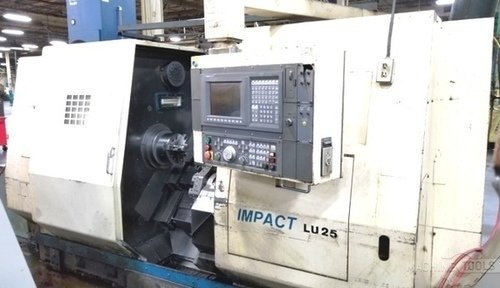

2002 OKUMA LU-25 / 1000 4-AXIS CNC TURNING CENTER
EQUIPPED WITH:
Okuma U100L CNC Control w/Color CRT, High Low Chuck Pressure, 40 HP Spindle, 3.54" Spindle Bore, 12 Position Upper and 10 Position, Lower Simultaneous Tool Turrets (22) Total Tools), Side Discharge Chip Conveyor and Coolant System.

MAIN SPECIFICATIONS:
Max Swing Over Slant Bed ....................................... 25.59"
Max Turning Diameter............................................... 16.54"
Max Machinable Center Distance............................. 49.21"
Cross Travel (X-Axis) Upper Slide Above Center...... 8.27"
Lower Slide Below Center ......................................... 7.68"
Longitudinal Travel (Z-Axis) Upper Slide.................. 49.61"
Lower Slide ................................................................ 49.61"
Feed Range X & Y-Axis (Infinitly Variable) ............. ..400 IPM
Rapid Traverse Rate X Axis ...................................... 590 IPM
Rapid Traverse Rate Z Axis ...................................... 787 IPM
Tool Positions (12-Upper & 10-Lower)..................... 22 Total
Spindle Bore .............................................................. 3.15"
Bar Capacity as Equipped......................................... 2.75"
Spindle Speed Range ............................................ ...3500
Spindle Horsepower................................................. 40 HP
Approximate Machine Dimensions......................... 189"x 100"
Approximate Machine Height................................... 87"
Approximate Machine Weight.................................. 24,000 LBS

Machine is in Excellent Condition! Low Hours * Full Videos in Process.!

Special Price:........................................$ Please Email or Call

I thank you for your review and consideration.

Sincerely,

Mark V. Murphy

Murphy Machinery Sales, Inc.
