DECKEL FP5NCالعالمي ميلز

بطاقة الهوية
431337
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1990
الموقع
المانيا
رقم المخزن
NL-MIL-DEC-1990-00001

الوصف

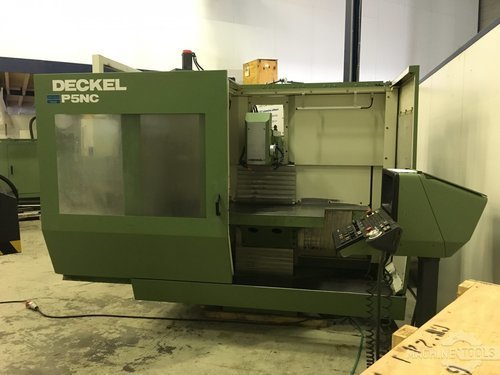

This DECKEL FP5NC Milling Machine was constructed in Germany in 1990 and has been operative for approximately 26000 production hours since then. Operated through a Grundig Dialog 11 Control unit, this machine has mainly worked with steel and aluminium during the past.

المواصفات

تحويل المواصفات للمتري
الجدول الحجم-W
21.65 "
الجدول الحجم-L
39.37 "

DECKEL FP5NC Milling Machine

Production Hours: 26000

General Data:
Measurements width: 3000 mm
Measurements depth: 2500 mm
Measurements height: 2400 mm
Machine weight: 4200 kg

Control Unit:
Brand: Grundig
Model: Dialog 11

Main Drive:
Number of spindles: 1
Spindle speed range: 6300 1/min

Movement:
X-Axis Movement: 710 mm
Y-Axis Movement: 445 mm
Z-Axis Movement: 600 mm

Workpiece:
Workpiece drm: 80 mm
Workpiece weight: 600 kg

Table:
Outer length: 900 mm
Outer width: 550 mm

Tools:
Max weight: 450 kg
Max tool diameter: 130 mm
Max tool length: 220 mm

Media:
Main electronic connection: 400 V
Power consumption: 20 kVA
