GIDDINGS & LEWIS WINSLOW HC, NEW 1996, WITH TOOLING PACKAGEحفر المطاحن

بطاقة الهوية
431771
علامة تجارية
السنة
1996
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
157650

الوصف

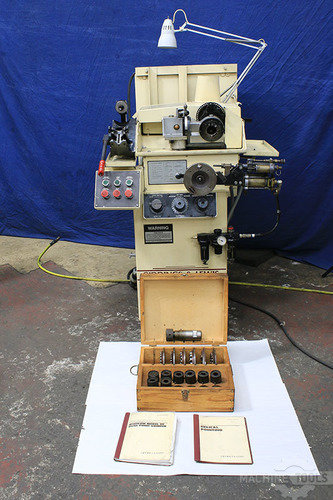

1.5" Dia. Giddings & Lewis WINSLOW HC, NEW 1996, WITH TOOLING PACKAGE DRILL GRINDER, AUTO FEED OPTION, LATE & CLEAN

المواصفات

تحويل المواصفات للمتري
أقل سعة الثقب
0.0625 "
أقصى سعة الثقب
1 "

GIDDINGS & LEWIS "Winslowmatic" Drill Grinder Model: HC      S/N: 940-00690-96        New: 1996 Drill point type and capacities:conventional point 1/16" to 1.5" diameterhelical point 1/16" to 1" diameterracon point 1/16" to 1" diametersplit point 1/16" to 0.5" diameterpyrcon (four facet) 1/16" to 1 diameterGrinding wheel size 12" diameter x 5" bore x 0.75" faceDrill point included angles from 90° to 140°Approximate weight: 1,200 lbs. Equipped with the Following Tooling Package: Bushing Index Plates, Inch & Metric Part No. 526-54266.00      1/16" - #2 Drill Part No. 526-54267.00      #24 Drill - #4 Drill Part No. 526-54268.00      7/32" - 19/64"   Part No. 526-54269.00      5/16" -  X Drill, Part No. 526-54270.00      Y Drill - 19/32" Part No. 526-54275.00      6.3mm - 8.0mm  Drill HoldersPart No. 592 - 50003 - 000.62" - .125"1.55 - 3.20mm Part No. 592-50022-000.125" - .187"3.2 - 4.8mm Part No. 592-50023 - 000.187" - .250"4.8 - 6.4mm Part No. 592-50024-000.250" - .312"6.4 - 8.00mm Part No. 592-50025-000.312" - .375"8.00 - 9.5mm Part No. 592-50026-000.375" - .469"9.5 - 11.9mm Part No. 592-50027-000.469" - .562"11.9 - 14.3mm Part No. 592-50028-000.562" - .656"14.3 - 16.7mm   Capability to handle all types of 2-fluted, right hand drillsLip clearance angle adjusted from the operator's control consolePoint angle varied from by angular adjustment of workheadCam action-generated rotary motion in all three axes set at the operator's control consoleBuilt-in cam-formed wheel dresserBellows airfeed attachmentWork light 1/8 H.P. coolant pump motor.25 H.P. workhead motor1 H.P. grinding wheel drive motor and electrical controls3/60/230 or 460 volt input, wired presently for 460 Volts Special Note:Parts & Service are available from:Winslow EngineeringFond du Lac, WI(920) 921-6404www.winsloweng.com  ** Excellent Condition & Appearance - Original Paint **** Inspect Under Power in our Harrison, NJ Warehouse **

FOR MORE INFORMATION: Call Andy at 973-497-7600
